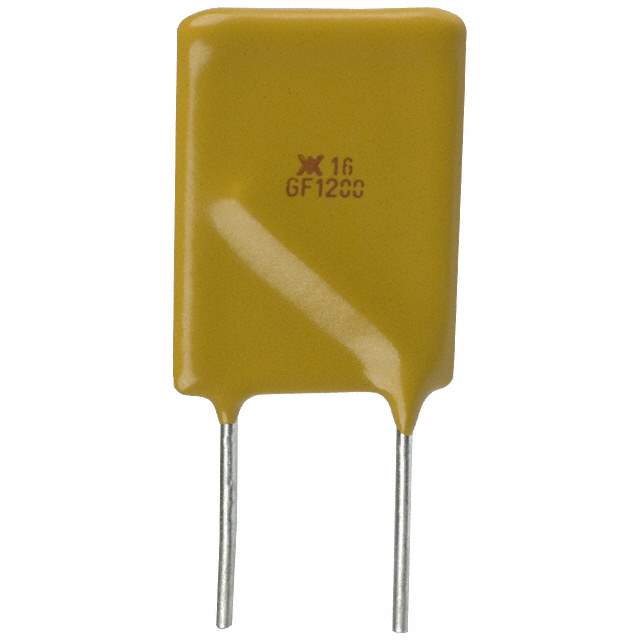

RF3267-000 Real Image
Same model may have multiple batches, images only for reference.

RF3267-000

Part No RF3267-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description Ptc Reset Fuse 16V 12A Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Radial
Height - Seated (Max) 27.9908 mm
Hold Current 12 A
Lead Pitch 10.16 mm
Length 17.018 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 7.5 s
Trip Current 20.4 A
Width 2.921 mm
Win Source Part Number 1145925-RF3267-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF3267-000 CAD Model

Description

The Littelfuse Inc. RF3267-000 PTC resettable fuse is designed for overcurrent protection.

  • Trip Current: 20.4A
  • Hold Current: 12A
  • Time to Trip: 7.5s
  • Max Current: 100A
  • Package: Radial
  • Lead Pitch: 10.16mm
  • Operating Temperature: -40°C to 85°C
  • RoHS Compliant: Yes
  • Applications: Battery Packs, Power Supplies, and Motor Drives
