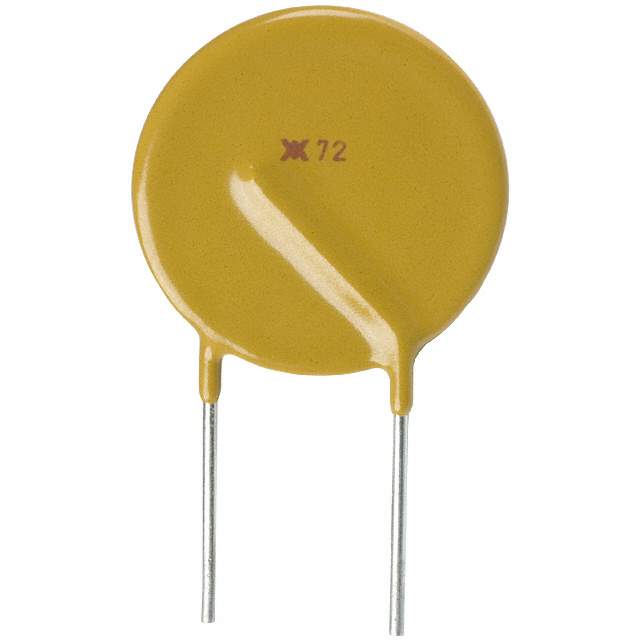

RF2649-000 Real Image
Same model may have multiple batches, images only for reference.

RF2649-000

Part No RF2649-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 2.5A(hold) 5A(trip) 72VDC 40A 2.5W 15.6s 0.05Ohm Radial 20.8 X 3mm T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Height - Seated (Max) 25.4 mm
Hold Current 2.5 A
Lead Pitch 10.16 mm
Max Current Rating 40 A
Mount Through Hole
RoHS Compliant
Time to Trip 15.6 s
Trip Current 5 A
Width 2.9972 mm
Win Source Part Number 1020657-RF2649-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF2649-000 CAD Model

Description

The Littelfuse Inc. RF2649-000 is a PTC resettable fuse from Littelfuse Inc.

  • Mounting: Surface mount device
  • Height: 25.4 mm
  • Width: 2.9972 mm
  • Trip Current: 5 A
  • Hold Current: 2.5 A
  • Supply: limited
  • Popularity rate: low
