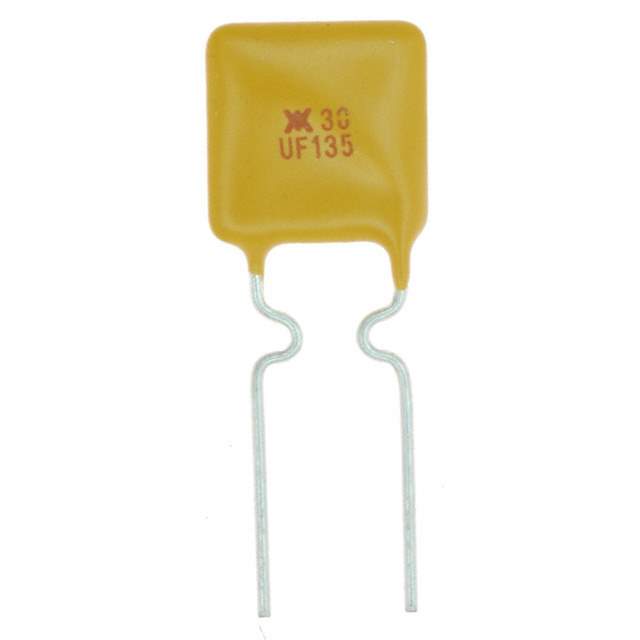

RF2644-000 Real Image
Same model may have multiple batches, images only for reference.

RF2644-000

Part No RF2644-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 1.35A(hold) 2.7A(trip) 30V 100A 0.8W 7.3s 0.04Ohm Radial 8.9 X 3 X 13.5mm Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Radial
Height - Seated (Max) 13.5128 mm
Hold Current 1.35 A
Lead Pitch 5.0546 mm
Length 8.89 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 7.3 s
Trip Current 2.7 A
Voltage Rating (DC) 30 V
Width 2.9972 mm
Win Source Part Number 1124464-RF2644-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2644-000 CAD Model

Description

The PTC Resettable Fuse from Littelfuse Inc. is a radial through-hole component that measures 8.89mm in length, 2.9972mm in width, and 13.5128mm in height.

  • Voltage Rating: 30VDC
  • Hold Current: 1.35A
  • Trip Current: 2.7A
  • Time to Trip: 7.3 seconds
  • Maximum Current Rating: 100A
  • RoHS Compliant: Yes
  • Demand: Medium
