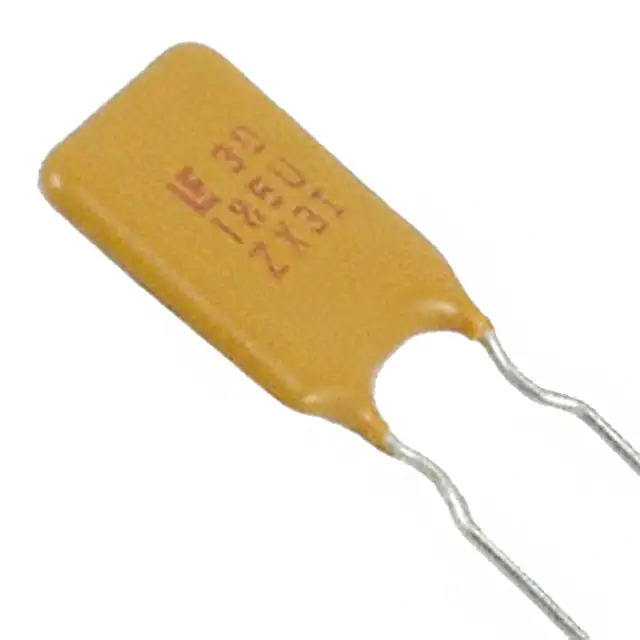

30R185UU Littelfuse Inc.
Same model may have multiple batches, images only for reference.

30R185UU

Part No 30R185UU
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.85A RADIAL / Polymeric PTC Resettable Fuse 30V 1.85 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 30R
Package Bulk
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 1.85 A
Current - Trip (It) 3.7 A
Current - Max 40 A
Time to Trip 8.7 s
Resistance - Initial (Ri) (Min) 30 mOhms
Resistance - Post Trip (R1) (Max) 90 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.402" L x 0.118" W (10.20mm x 3.00mm)
Height - Seated (Max) 0.618" (15.70mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361696-30R185UU
Ultra Librarian 3D Model Ultra Librarian 30R185UU CAD Model

Description

The 1361696-30R185UU is a PTC resettable fuse from Littelfuse Inc.

  • Series: POLY-FUSE® 30R
  • Application: Circuit Protection
  • Operating Temperature: -40°C to 85°C
  • Maximum Current: 40A
  • Maximum Voltage: 30V
  • Trip Current: 3.7A
  • Time to Trip: 8.7 seconds
  • Initial Resistance: 30 mOhms
  • Post-Trip Resistance: 90 mOhms
  • Approvals: cURus, TUV
  • Package: Radial Disc
