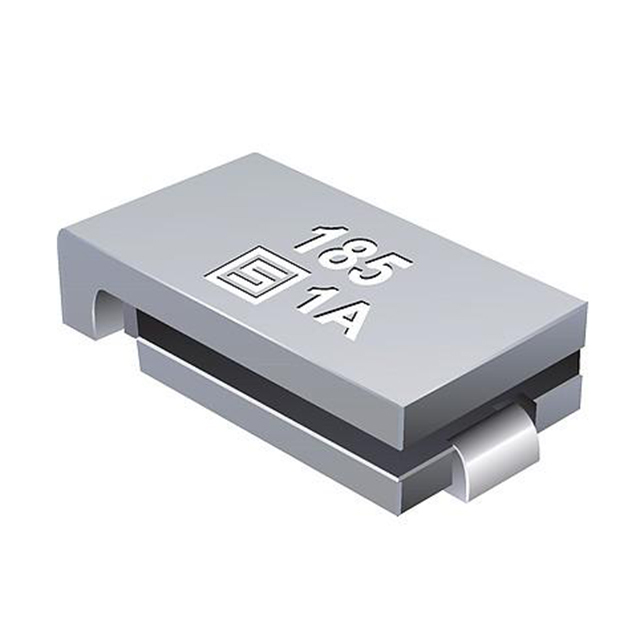

Same model may have multiple batches, images only for reference.
PICOSMDC075S-2 Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PICOSMDC075S-2

Part No PICOSMDC075S-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 750MA 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Current - Max 40 A
Time to Trip 200 ms
Resistance - Initial (Ri) (Min) 100 mOhms
Resistance - Post Trip (R1) (Max) 350 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Case / Package 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.055" W (2.10mm x 1.40mm)
Thickness (Max) 0.037" (0.93mm)
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1605374-PICOSMDC075S-2
Ultra Librarian 3D Model Ultra Librarian PICOSMDC075S-2 CAD Model
