Same model may have multiple batches, images only for reference.

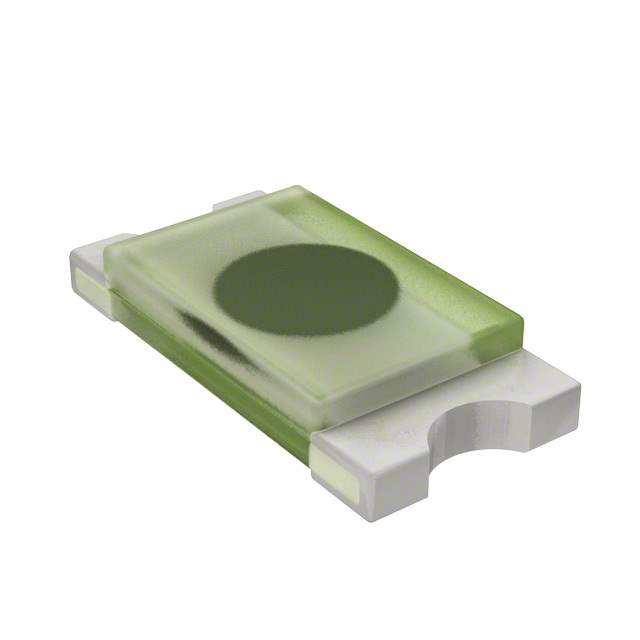

PGB0010603NR Real Image
Same model may have multiple batches, images only for reference.

PGB0010603NR

Part No PGB0010603NR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 150VC 0603
Datasheet
PGB0010603NR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Max Clamping Voltage 150V (Typ)
Applications General Purpose
Temperature Range - Operating -65°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0603 (1608 Metric)
Win Source Part Number 045749-PGB0010603NR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Safety, Portable Devices, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian PGB0010603NR CAD Model

Description

The PGB0010603NR is a zener type electronic component manufactured by Littelfuse Inc.

  • Status: Obsolete
  • Popularity: Medium
  • Temperature Range: -65°C to 125°C
  • Mounting: SMD (SMT) technology
  • Stand-off Voltage: 24V
  • Maximum Clamping Voltage: 150V
