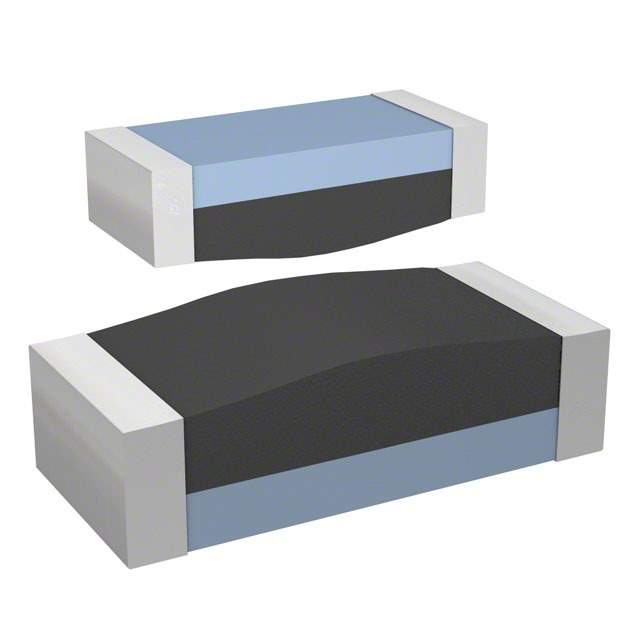

Same model may have multiple batches, images only for reference.

PESD0402-140

Name: PESD0402-140
Brand: Littelfuse Inc.
SKU: 503945
Availability: InStock
Rating: 4.85 (220 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD0402-140
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	ESD Suppressor Diode Polymer Bi-Dir 14V Automotive 2-Pin Case 0402(1006Metric) T/R / TVS DIODE 14VWM 40VC 0402
Datasheet	PESD0402-140 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	14V (Max)
Max Clamping Voltage	40V
Applications	Ethernet, HDMI
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	0402
Win Source Part Number	1087507-PESD0402-140
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, Consumer Electronics, Portable Devices, RF Communications, Industrial, Multimedia
Family Name	PESD0402-140
Introduction Date	November 09, 2015
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian PESD0402-140 CAD Model

Alternative Products

Description

The Littelfuse Inc. PESD0402-140 is a zener type of circuit protection.

Applications: Ethernet and HDMI
Mounting: SMD (SMT)
STAND-OFF Voltage: 14V (Max)
Clamping Voltage (Max): 40V
Temperature Range: -55°C to 125°C (TJ)
Family: PESD0402-140
Status: Active
Halogen-Free: Yes
Popularity: High
Compliance: ECCN
Availability: Estimated until 2026
