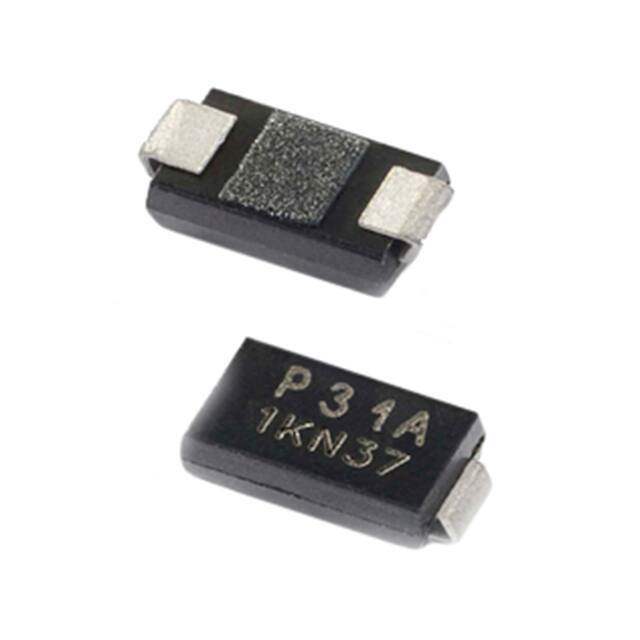

P0220S1ALRP Real Image
Same model may have multiple batches, images only for reference.

P0220S1ALRP

Part No P0220S1ALRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR BI 15V 30A DO214 2L
Datasheet
P0220S1ALRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Thyristors
Mfr Littelfuse Inc.
Series SIDACtor®
Package Tape & Reel
Product Status Active
Voltage - Breakover 32V
Voltage - Off State 15V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 150 A
Current - Peak Pulse (10/1000µs) 50 A
Current - Hold (Ih) 50 mA
Number of Elements 1
Capacitance 30pF
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 888251-P0220S1ALRP
Ultra Librarian 3D Model Ultra Librarian P0220S1ALRP CAD Model

Description

The P0220S1ALRP is a surface mountable thyristor, specifically a SIDACtor, used for circuit protection against transient voltage events.

  • Type: Thyristor (SIDACtor)
  • Mounting Type: Surface Mount
  • Capacitance: 30pF
  • Peak Pulse Current Rating: 50A
  • Off-State Voltage: 15V
  • Breakover Voltage: 32V
  • Hold Current: 50mA
  • Peak Pulse Current: 150A
  • Package: DO-214AC (SMA)
  • Manufacturer: Littelfuse Inc.
  • Product Status: Active
