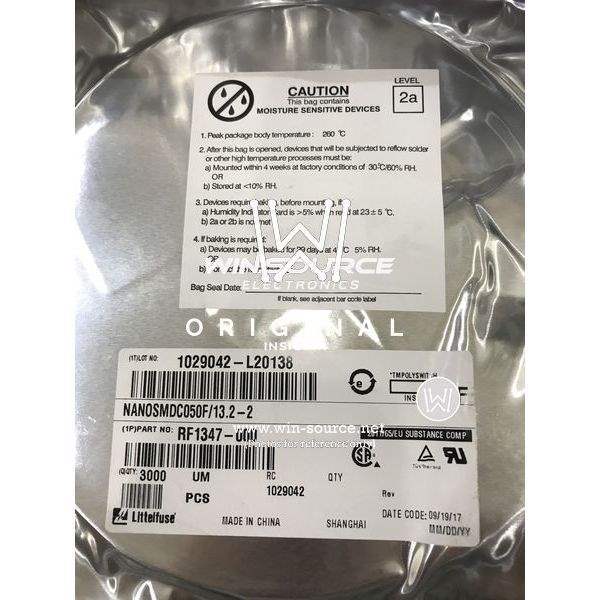

NANOSMDC050F/13.2-2 Littelfuse Inc. NANOSMDC050F/13.2-2 real image 2 NANOSMDC050F/13.2-2 label picture NANOSMDC050F/13.2-2 real image
Same model may have multiple batches, images only for reference.
NANOSMDC050F/13.2-2 Littelfuse Inc. NANOSMDC050F/13.2-2 real image 2 NANOSMDC050F/13.2-2 label picture NANOSMDC050F/13.2-2 real image
NANOSMDC050F/13.2-2 Littelfuse Inc. NANOSMDC050F/13.2-2 real image 2 NANOSMDC050F/13.2-2 label picture NANOSMDC050F/13.2-2 real image
Same model may have multiple batches, images only for reference.

NANOSMDC050F/13.2-2

Part No NANOSMDC050F/13.2-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.5A(hold) 1.1A(trip) 13.2VDC 100A 0.8W 0.1s 0.2Ohm SMD Solder Pad 1206 T/R Automotive / POLYSWITCH 0.50A RESET FUSE SMD
Datasheet
NANOSMDC050F/13.2-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 13.2V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1.1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 200 mOhm
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.029" (0.74mm)
Approvals CSA, TUV, UL
Win Source Part Number 1081653-NANOSMDC050F/13.2-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Communications & Networking, Automotive
Family Name NANOSMDC
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NANOSMDC050F/13.2-2 CAD Model

Description

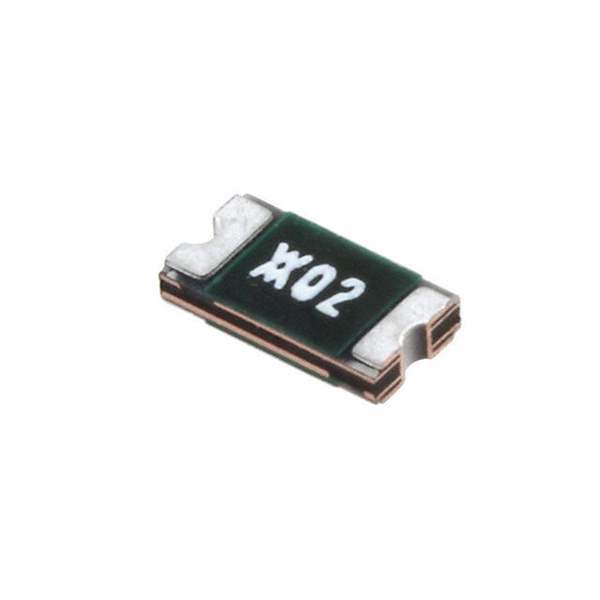

The Littelfuse Inc. NANOSMDC050F/13.2-2 is a polymeric type circuit protection device.

  • Voltage - Rated: 13.2V
  • Current - Max: 100A
  • Thickness (Max): 0.029" (0.74mm)
  • Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Applications: Industrial, Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Communications & Networking
  • Mounting Type: SMD (SMT)
  • Current - Hold (Ih): 500mA
  • Current - Trip (It): 1.1A
  • Time to Trip: 100ms
  • Approvals: CSA, TUV, UL
  • Packaging: Reel-TR
