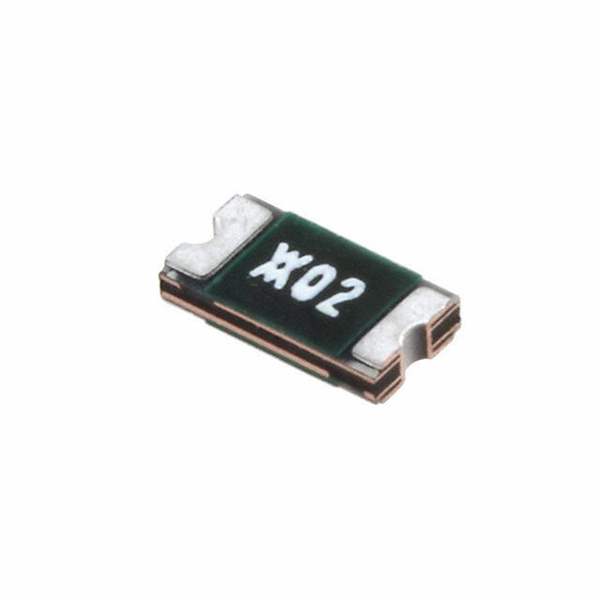

NANOSMDC020F
Same model may have multiple batches, images only for reference.

NANOSMDC020F

Part No NANOSMDC020F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 200MA 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features Polymeric PTC Resettable Fuse 24V 200 mA Ih Surface Mount 1206 (3216 Metric), Concave
Manufacturer Littelfuse Inc.
Series PolySwitch®
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
Package 1206 (3216 Metric), Concave
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number NANOSMDC020FTR, NANOSMDC020FDKR, NANOSMDC020FCT, RF1300-000TR-ND, RF1300-000DKR-ND, RF1300-000, RF1300-000CT-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928714-NANOSMDC020F
Ultra Librarian 3D Model Ultra Librarian NANOSMDC020F CAD Model

Description

The NANOSMDC020F is a surface mount Polymeric PTC Resettable Fuse manufactured by Littelfuse Inc. This fuse has a voltage rating of 24V and a current rating of 200 mA Ih.

  • Voltage Rating: 24V
  • Current Rating: 200 mA Ih
  • Package: 1206 (3216 Metric), Concave reel - TR
  • Series: PolySwitch®
  • Component Status: obsolete
  • Popularity: high
  • Quantity per Package: 3000
  • MSL Level: 2A (4 Weeks)
  • REACH: unaffected
  • HTSUS: 8533.40.8070
  • Feature: Designed to provide reliable protection for circuits that require stable and efficient power delivery
