Same model may have multiple batches, images only for reference.

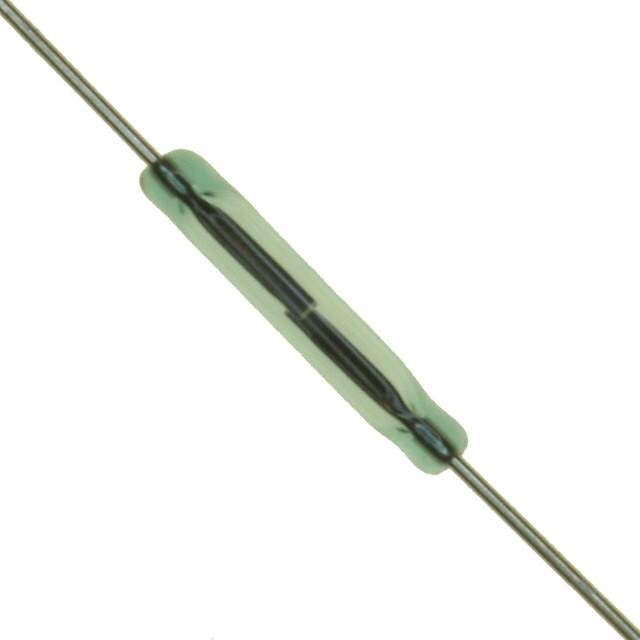

MLRR-4-22-28 Real Image
Same model may have multiple batches, images only for reference.

MLRR-4-22-28

Part No MLRR-4-22-28
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 700MA 140V
Datasheet
MLRR-4-22-28 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Glass Body
Circuit SPST-NO
Operate Range 22 to 28AT
Current - Switching 700mA (AC), 1A (DC)
Voltage - Switching AC 140V
Voltage - Switching DC 200V
Power - Rated 20W
Operate Time 0.6ms
Release Time 0.2ms
Mounting Through Hole
Termination Style Axial
Length - Overall 1.590" (40.39mm)
Size - Body 0.105" Dia x 0.600" L (2.66mm x 15.24mm)
Temperature Range - Operating -40°C to 125°C
Capacitance 0.4pF
Current - Carry 1A (DC)
Win Source Part Number 1042970-MLRR-4-22-28
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MLRR-4-22-28 CAD Model

Description

The Littelfuse Inc. glass body switch is a high-quality electronic component designed for use in a variety of applications.

  • Manufacturer: Littelfuse Inc.
  • Product: Glass Body Switch
  • Termination Style: Axial
  • Mounting: Through Hole
  • Capacitance: 0.4pF
  • Switch Type: Single-Pole, Single-Throw Normally Open
  • Operate Time: 0.6ms
  • Release Time: 0.2ms
  • Length: 1.590 inches (40.39mm)
  • Power Rating: 20W
  • Operate Range: 22 to 28AT
  • Switching Current: 700mA (AC) or 1A (DC)
  • Voltage Rating: 140V (AC) or 200V (DC)
  • Body Size: 0.105 inches in diameter and 0.600 inches in length
  • DC Current Carry: 1A
  • Operating Temperature Range: -40°C to 125°C
  • Popularity: Popular
  • Supply and Demand: Balance
