Same model may have multiple batches, images only for reference.

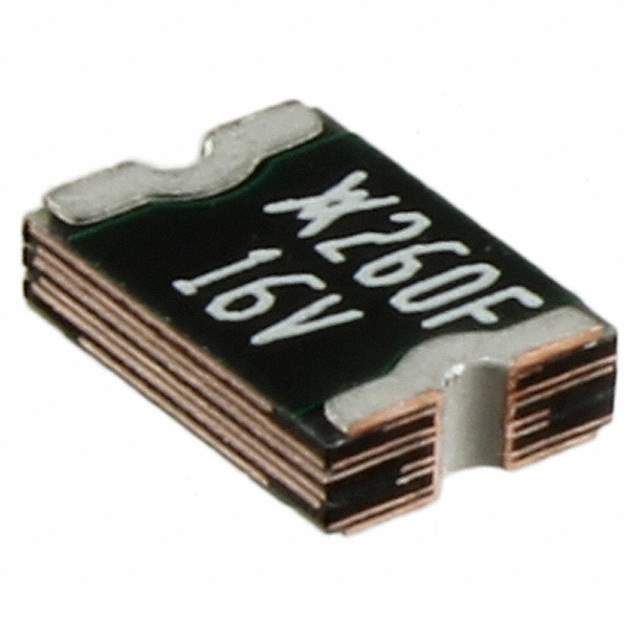

MINIASMDC260F/16-2 Real Image
Same model may have multiple batches, images only for reference.

MINIASMDC260F/16-2

Part No MINIASMDC260F/16-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 2.6A 1812
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2.6A
Current - Trip (It) 5A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Maximum) 50 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 1812 (4532 Metric), Concave
Dimension 0.181" L x 0.128" W (4.60mm x 3.24mm)
Thickness (Maximum) 0.060" (1.52mm)
Manufacturer Pack Quantity 1,500
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803804-MINIASMDC260F/16-2
Ultra Librarian 3D Model Ultra Librarian MINIASMDC260F/16-2 CAD Model

Description

The MINIASMDC260F/16-2 is a polymeric type fuse manufactured by Littelfuse Inc.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Time-to-Trip: 5s
  • Temperature Range: -40°C to 85°C
  • Package: 1812 (4532 Metric), concave
  • Initial Resistance: 15 mOhms
  • Applications: Computers, mobile phones, power supplies
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 2A (4 weeks)
