Same model may have multiple batches, images only for reference.

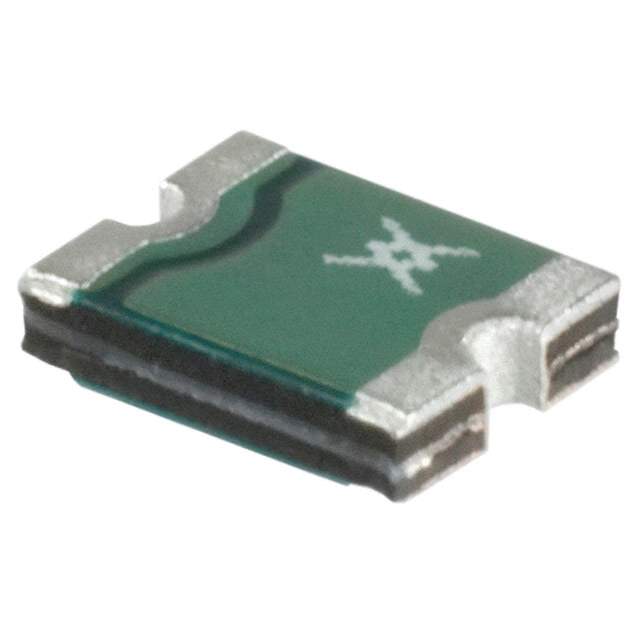

MICROSMDCH050F-02 Real Image
Same model may have multiple batches, images only for reference.

MICROSMDCH050F-02

Part No MICROSMDCH050F-02
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 500MA 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 13.2V
Current - Max 10A
Current - Hold (Ih) (Maximum) 500mA
Current - Trip (It) 1.5A
Time to Trip 50ms
Resistance - Initial (Ri) (Min) 190 mOhms
Resistance - Post Trip (R1) (Maximum) 900 mOhms
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 1210 (3225 Metric), Concave
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Maximum) 0.025" (0.64mm)
Manufacturer Pack Quantity 4,000
MSL Level 2A (4 Weeks)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801037-MICROSMDCH050F-02
Ultra Librarian 3D Model Ultra Librarian MICROSMDCH050F-02 CAD Model

Description

The Littelfuse Inc. MICROSMDCH050F-02 is a polymeric type device.

  • Mounting: Surface Mount
  • Maximum Voltage: 13.2V
  • Maximum Current: 10A
  • Time to Trip: 50ms
  • Resistance: 190mΩ
  • Device Package: 1210 (3225 Metric), Concave
  • Thickness: 0.025" (0.64mm)
  • Post Trip Resistance: 900mΩ
  • Popularity: High
  • Supply and Demand Status: Sufficient
