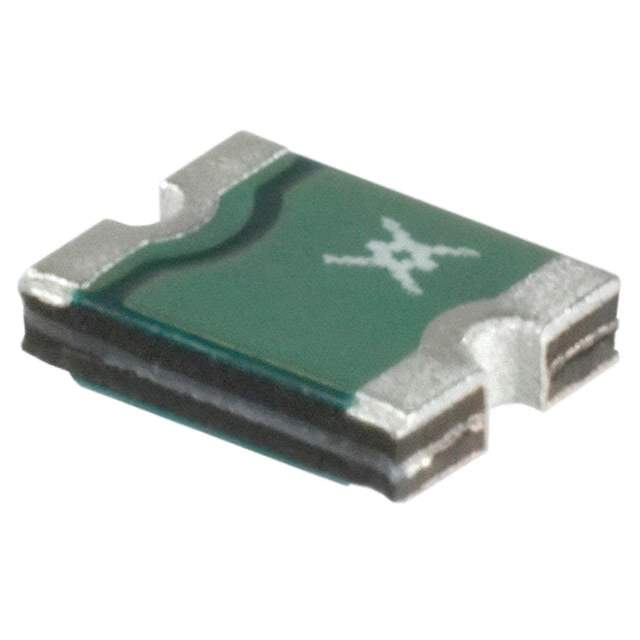

MICROSMD075-2 Real Image
Same model may have multiple batches, images only for reference.

MICROSMD075-2

Part No MICROSMD075-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH 0.75A RESET FUSE SMD
Datasheet
MICROSMD075-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 110 mOhm
Resistance - Post Trip (R1) (Max) 400 mOhm
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.024" (0.62mm)
Approvals CSA, TUV, UL
Win Source Part Number 111919-MICROSMD075-2
Ultra Librarian 3D Model Ultra Librarian MICROSMD075-2 CAD Model

Description

The Littelfuse Inc. 111919-MICROSMD075-2 is a polymeric type circuit protection component that is used to protect electronic devices from overcurrent and short circuits.

  • Approvals: CSA, TUV, and UL approvals
  • Mounting: SMD (SMT) technology
  • Thickness (max): 0.024 inches (0.62mm)
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Hold Current: 750mA
  • Trip Current: 1.5A
  • Time to Trip: 100ms
  • Status: obsolete (EOL)
  • Dimension: 0.127 inches L x 0.102 inches W (3.22mm x 2.58mm)
  • Initial Resistance: 110 mOhm
  • Post-Trip Resistance: 400 mOhm
  • Manufacturer: Littelfuse Inc.
