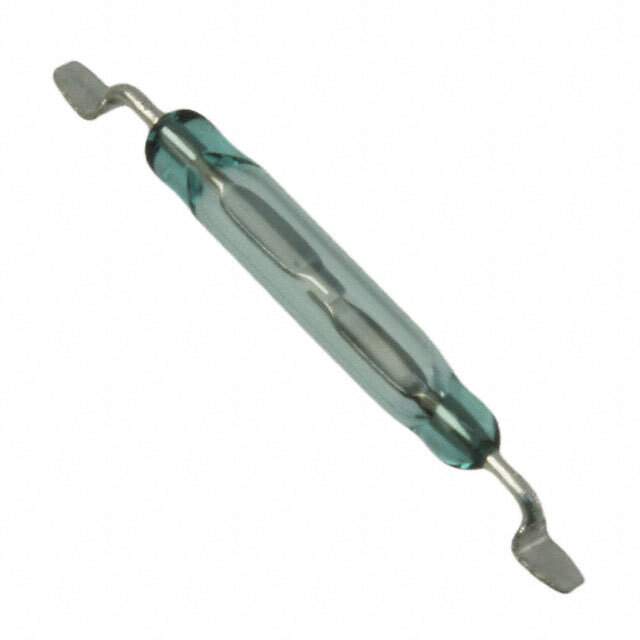

MDSM-10R-20-25 Real Image
Same model may have multiple batches, images only for reference.

MDSM-10R-20-25

Part No MDSM-10R-20-25
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description Switch Reed N.O. 0.5A 140VAC 200VDC 10VA 0.5ms 120mOhm / SWITCH REED SPST-NO 350MA 140V
Datasheet
MDSM-10R-20-25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Littelfuse Inc.
Series MDSM-10
Packaging Reel package
Type Glass Body
Circuit SPST-NO
Operate Range 20 ~ 25AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140V
Voltage - Switching DC 200V
Power - Rated 10W
Operate Time 0.5ms
Release Time 0.1ms
Mounting SMD
Termination Style Gull Wing
Length - Overall 0.615" (15.62mm)
Size - Body 0.071" Dia x 0.400" L (1.80mm x 10.16mm)
Height Above Board 0.079" (2.00mm)
Operating Temperature Range -40°C ~ 125°C
Capacitance 0.2pF
Current - Carry 1A (DC)
Win Source Part Number 788395-MDSM-10R-20-25
Popularity Medium
Supply and Demand Status Limited
Family Name MDSM-10
Introduction Date August 28, 2015
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian MDSM-10R-20-25 CAD Model

Description

The MDSM-10 from Littelfuse Inc. is a switch.

  • Series: MDSM-10
  • Package: Reel
  • Body Type: Glass
  • Termination Style: Gull-wing
  • Operating Temperature: -40°C ~ 125°C
  • Height Above Board: 0.079" (2.00mm)
  • Mounting Type: SMD
  • Capacitance: 0.2pF
  • Circuit: SPST-NO
  • Operate Time: 0.5ms
  • Release Time: 0.1ms
  • Length Overall: 0.615" (15.62mm)
  • Power Rated: 10W
  • Operate Range: 20 ~ 25AT
  • Release Range: -
  • Current Switching: 350mA (AC), 500mA (DC)
  • Voltage Switching AC: 140V
  • Voltage Switching DC: 200V
  • Body Size: 0.071" Dia x 0.400" L (1.80mm x 10.16mm)
  • Current Carry: 1A (DC)
  • Cross-Reference: MDSM-10B-20-25
  • Introduction Date: August 28, 2015
  • ECCN: EAR99
  • Country of Origin: Philippines
  • Estimated EOL Date: 2031
  • Compliance: Halogen-free
