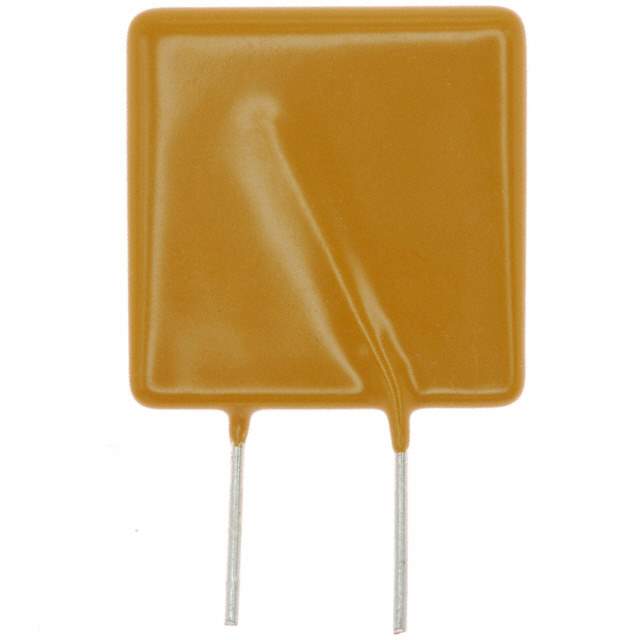

LVRL125S Real Image
Same model may have multiple batches, images only for reference.

LVRL125S

Part No LVRL125S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices Line-Voltage-Rated Devices | PTC RESET FUSE 120V 1.25A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Type Polymeric
Voltage - Max 120V (135V Int)
Current - Max 12.5A
Current - Hold (Ih) (Maximum) 1.25A
Current - Trip (It) 2.5A
Time to Trip 20s
Resistance - Initial (Ri) (Minimum) 110 mOhms
Resistance - Post Trip (R1) (Maximum) 330 mOhms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.551" L x 0.161" W (14.00mm x 4.10mm)
Height - Seated (Maximum) 0.854" (21.70mm)
Lead Spacing 0.200" (5.08mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209643-LVRL125S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVRL125S CAD Model

Description

The Littelfuse Inc. electronic component with the Win Source Part Number 1209643-LVRL125S is a polymeric type circuit protection device.

  • Maximum Voltage Rating: 120V
  • Maximum Current Rating: 12.5A
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Trip Current: 2.5A
  • Time to Trip: 20s
  • Recommended for: Circuits where overcurrent protection is required
