Same model may have multiple batches, images only for reference.

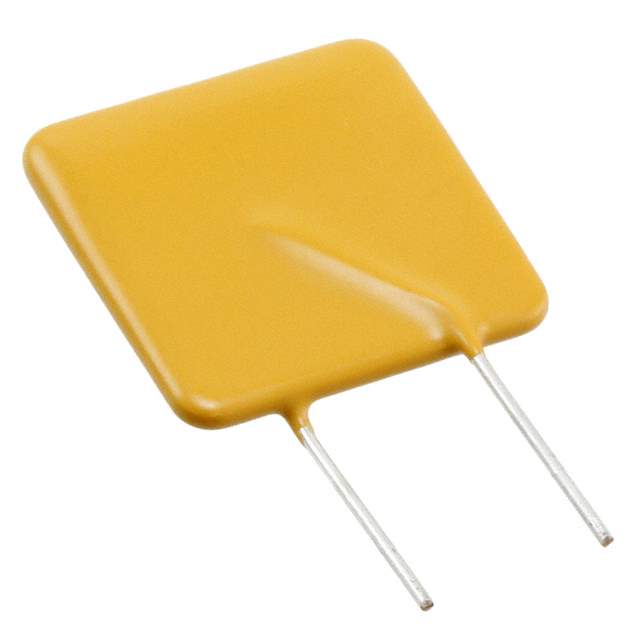

LVR200S-240 Real Image
Same model may have multiple batches, images only for reference.

LVR200S-240

Part No LVR200S-240
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 2A(hold) 4A(trip) 240V 20A 4.52W 28s 0.089Ohm Radial 24.9 X 6.1 X 33.8mm Bag / POLYSWITCH PTC RESET 240V 2A
Datasheet
LVR200S-240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LVR
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 20A
Current - Hold (Ih) (Maximum) 2A
Current - Trip (It) 4A
Time to Trip 28s
Resistance - Initial (Ri) (Minimum) 89 mOhm
Resistance - Post Trip (R1) (Maximum) 221 mOhm
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.980" L x 0.240" W (24.90mm x 6.10mm)
Height - Seated (Maximum) 1.330" (33.80mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 784749-LVR200S-240
Popularity Medium
Supply and Demand Status Limited
Family Name LVR
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LVR200S-240 CAD Model

Description

The LVR200S-240 is a PolySwitch from Littelfuse Inc.

  • Type: Polymeric
  • Maximum Voltage: 240V (265V Int)
  • Maximum Current: 20A
  • Time to Trip: 28s
  • Current Trip: 4A
  • Package: Radial, disc
  • Lead Spacing: 0.400" (10.15mm)
  • Approvals: CQC, CSA, TUV, UL
  • Height: 1.330" (33.80mm)
  • Dimension: 0.980" L x 0.240" W (24.90mm x 6.10mm)
