Same model may have multiple batches, images only for reference.

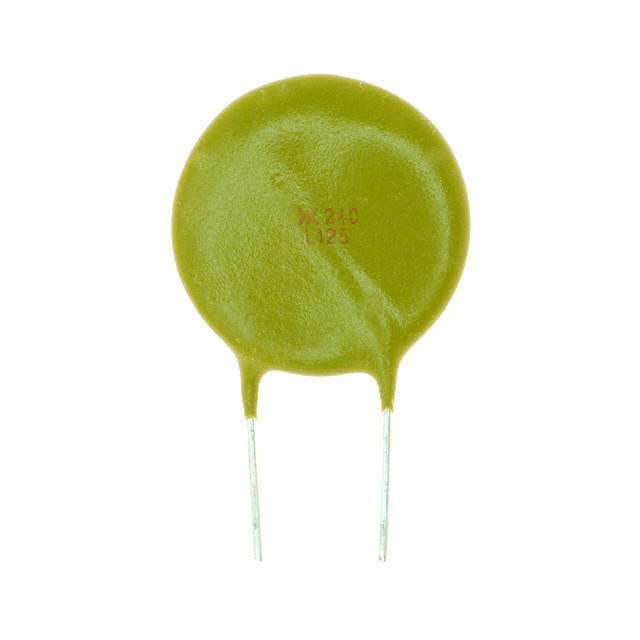

LVR125S Real Image
Same model may have multiple batches, images only for reference.

LVR125S

Part No LVR125S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 240V 1.25A
Datasheet
LVR125S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 12.5A
Current - Hold (Ih) (Max) 1.25A
Current - Trip (It) 2.5A
Time to Trip 23s
Resistance - Initial (Ri) (Min) 165 mOhm
Resistance - Post Trip (R1) (Max) 440 mOhm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.840" Dia x 0.210" W (21.20mm x 5.30mm)
Height - Seated (Max) 1.080" (27.40mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 1064552-LVR125S
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LVR125S CAD Model

Description

The LVR125S is a polymeric type circuit protection component manufactured by Littelfuse Inc.

  • Current Rating: 12.5A
  • Mounting Design: Through-hole
  • Approvals: CQC, CSA, TUV, and UL
