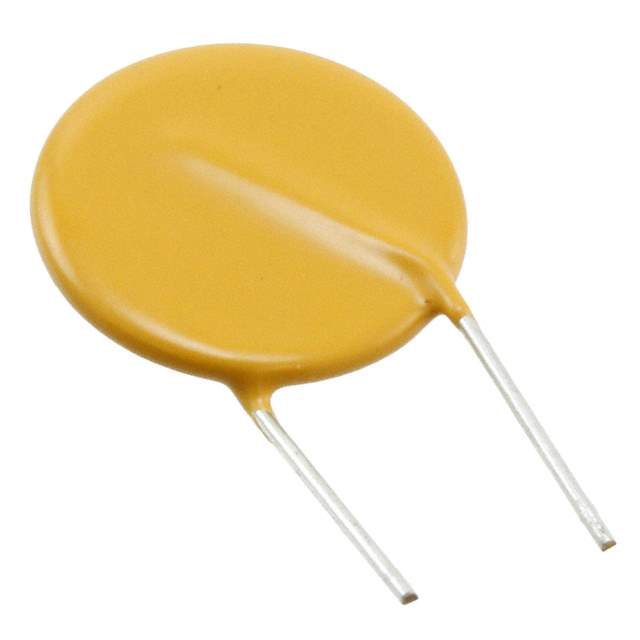

Same model may have multiple batches, images only for reference.

LVR125S-240

Name: LVR125S-240
Brand: Littelfuse Inc.
SKU: 199145
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LVR125S-240
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 240V 1.25A
Datasheet	LVR125S-240 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Status	Active
Type	Polymeric
Voltage - Max	240V (265V Int)
Current - Max	12.5A
Current - Hold (Ih) (Max)	1.25A
Current - Trip (It)	2.5A
Time to Trip	23s
Resistance - Initial (Ri) (Min)	165 mOhm
Resistance - Post Trip (R1) (Max)	440 mOhm
Temperature Range - Operating	-20°C to 85°C
Mounting	Through Hole
Dimension	0.840" Dia x 0.210" W (21.20mm x 5.30mm)
Height - Seated (Max)	1.080" (27.40mm)
Lead Spacing	0.400" (10.15mm)
Approvals	CQC, CSA, TUV, UL
Win Source Part Number	096512-LVR125S-240
Ultra Librarian 3D Model	Ultra Librarian LVR125S-240 CAD Model

Alternative Products

Description

The Littelfuse Inc. 096512-LVR125S-240 is a polymeric type circuit protection component that is approved by CQC, CSA, TUV, and UL

Maximum Voltage: 240V (265V Int)
Maximum Current: 12.5A
Current Hold (Ih): 1.25A
Current Trip (It): 2.5A
Time to Trip: 23s
Height: 1.080" (27.40mm)
Lead Spacing: 0.400" (10.15mm)
Resistance - Initial (Ri) (Min): 165 mOhm
Resistance - Post Trip (R1) (Max): 440 mOhm

This component is suitable for circuit protection applications and is available in bulk packaging.
