Same model may have multiple batches, images only for reference.

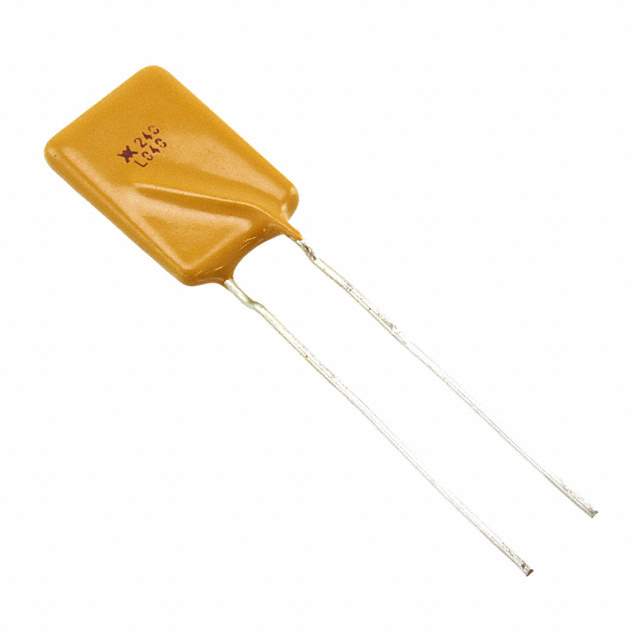

LVR040K-2 Real Image
Same model may have multiple batches, images only for reference.

LVR040K-2

Part No LVR040K-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.4A
Datasheet
LVR040K-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 5.5A
Current - Hold (Ih) (Max) 400mA
Current - Trip (It) 900mA
Time to Trip 24s
Resistance - Initial (Ri) (Min) 600 mOhm
Resistance - Post Trip (R1) (Max) 1.9 Ohm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.453" L x 0.150" W (11.50mm x 3.80mm)
Height - Seated (Max) 0.820" (20.90mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 096510-LVR040K-2
Ultra Librarian 3D Model Ultra Librarian LVR040K-2 CAD Model

Description

The Littelfuse Inc. 096510-LVR040K-2 is a polymeric type circuit protection component that comes with a maximum voltage rating of 240V (265V Int) and a maximum current rating of 5.5A. It has a height of 0.820" (20.90mm) and a lead spacing of 0.200" (5.08mm). The component is approved by CQC, CSA, TUV, and UL.

  • Current Hold (Ih): 400mA
  • Current Trip (It): 900mA
  • Time to Trip: 24s
  • Operating Temperature Range: -20°C to 85°C
  • Dimension: 0.453" L x 0.150" W (11.50mm x 3.80mm)
  • Initial Resistance (Ri): a minimum of 600 mOhm
  • Post-Trip Resistance (R1): a maximum of 1.9 Ohm
