Same model may have multiple batches, images only for reference.

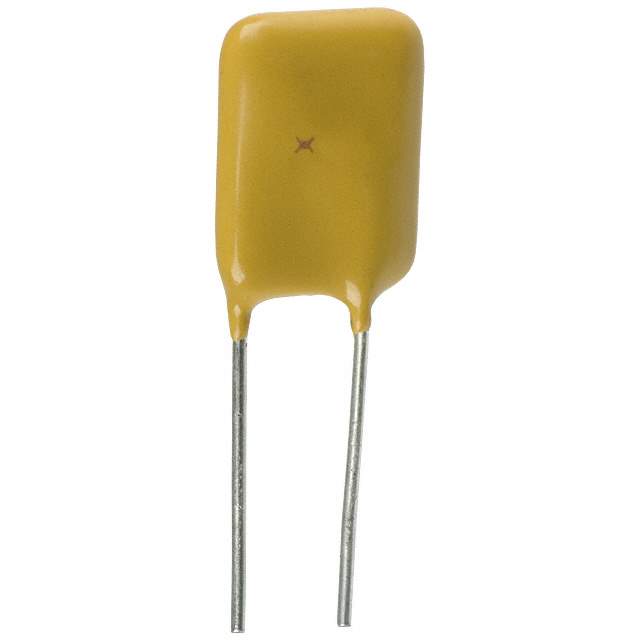

LVR025S Real Image
Same model may have multiple batches, images only for reference.

LVR025S

Part No LVR025S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch PTC Devices | PTC RESET FUSE 240V 250MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 3.5A
Current - Hold (Ih) (Maximum) 250mA
Current - Trip (It) 560mA
Time to Trip 18.5s
Resistance - Initial (Ri) (Minimum) 1.3 Ohms
Resistance - Post Trip (R1) (Maximum) 3.8 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.378" L x 0.150" W (9.60mm x 3.80mm)
Height - Seated (Maximum) 0.685" (17.40mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209628-LVR025S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVR025S CAD Model

Description

The Littelfuse Inc. LVR025S is a polymeric through-hole circuit protection device designed to protect against overcurrent and short-circuit events.

  • Maximum Voltage: 240V
  • Maximum Current: 3.5A
  • Current Trip: 560mA
  • Time to Trip: 18.5s
  • Approvals: CQC, CSA, TUV, UL
  • Hold Current: 250mA
  • Height: 0.685 inches
  • Packaging: Bulk
  • Market Popularity: Medium
  • Supply and Demand Status: Limited
