Same model may have multiple batches, images only for reference.

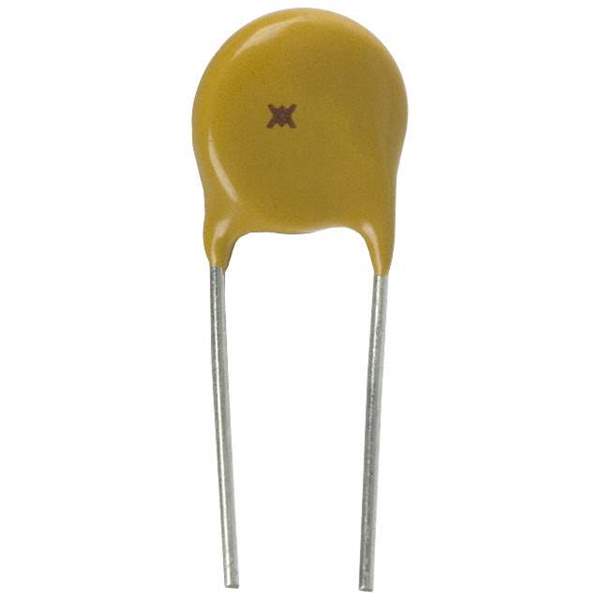

LVR016S Real Image
Same model may have multiple batches, images only for reference.

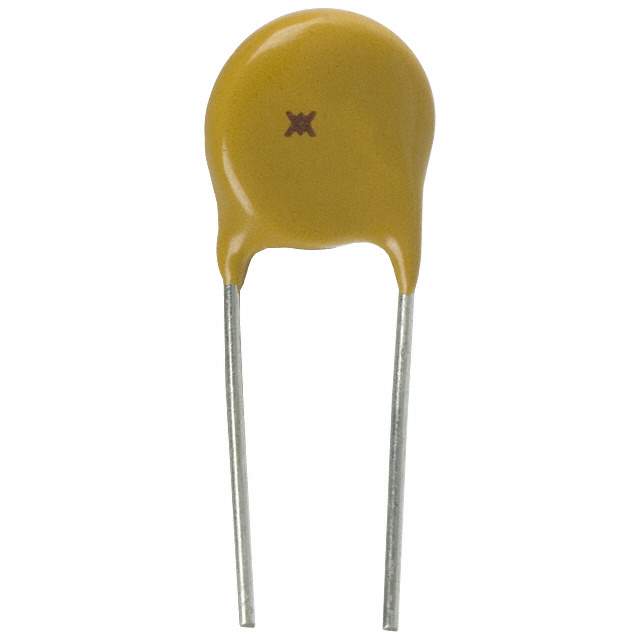

LVR016S

Part No LVR016S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH 240VAC .16A HOLD
Datasheet
LVR016S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 2A
Current - Hold (Ih) (Max) 160mA
Current - Trip (It) 370mA
Time to Trip 15s
Resistance - Initial (Ri) (Min) 2.5 Ohm
Resistance - Post Trip (R1) (Max) 7.8 Ohm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.390" Dia x 0.150" W (9.90mm x 3.80mm)
Height - Seated (Max) 0.492" (12.50mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 096507-LVR016S
Ultra Librarian 3D Model Ultra Librarian LVR016S CAD Model

Description

The LVR016S is a polymeric circuit protection device from Littelfuse Inc. It is approved by CQC, CSA, TUV, and UL. The device has a maximum voltage of 240V (265V Int) and a maximum current of 2A. The circuit protection device has a current hold (Ih) of 160mA and a current trip (It) of 370mA. The time to trip is 15s. The product is packaged in bulk and is of through-hole mounting. The circuit protection device is an active product and can operate in a temperature range of -20°C to 85°C.
