Same model may have multiple batches, images only for reference.

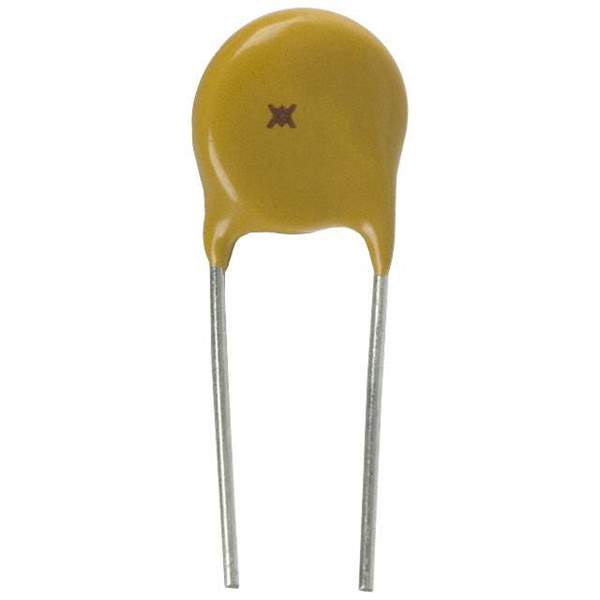

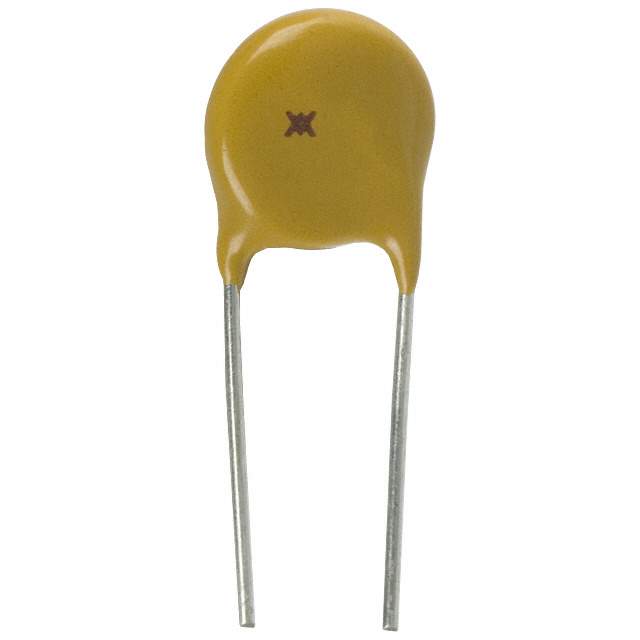

LVR012K Real Image
Same model may have multiple batches, images only for reference.

LVR012K

Part No LVR012K
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.12A(hold) 0.3A(trip) 240V 1.2A 1W 15s 3Ohm Radial 8.3 X 3.8mm Bag / POLYSWITCH PTC RESET 0.12A HOLD
Datasheet
LVR012K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LVR
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 1.2A
Current - Hold (Ih) (Maximum) 120mA
Current - Trip (It) 300mA
Time to Trip 15s
Resistance - Initial (Ri) (Minimum) 3 Ohm
Resistance - Post Trip (R1) (Maximum) 12 Ohm
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.327" Dia x 0.150" W (8.30mm x 3.80mm)
Height - Seated (Maximum) 0.510" (12.90mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 784744-LVR012K
Popularity Medium
Supply and Demand Status Limited
Family Name LVR
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LVR012K CAD Model

Description

The Littelfuse LVR012K is a PolySwitch circuit protection device designed for use in electronic devices. Littelfuse Inc.

  • Maximum Voltage: 240V
  • Maximum Current: 1.2A
  • Current Trip: 300mA
  • Time to Trip: 15s
  • Series: LVR
  • Popularity: Medium
  • Supply and Demand Status: Limited
