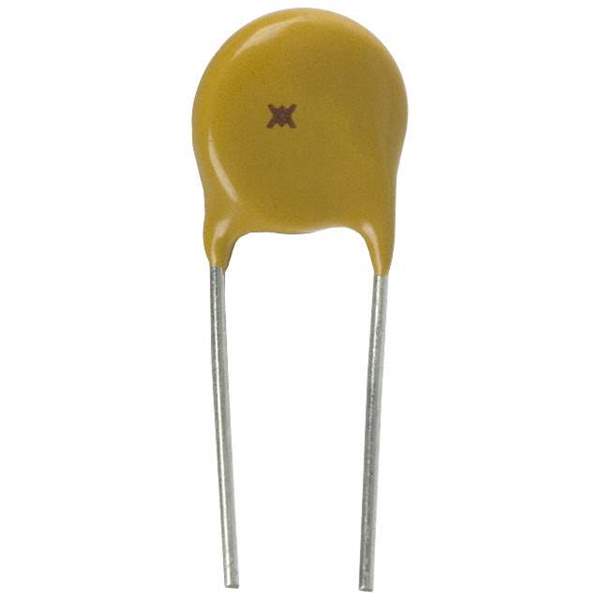

LVR005S Real Image
Same model may have multiple batches, images only for reference.

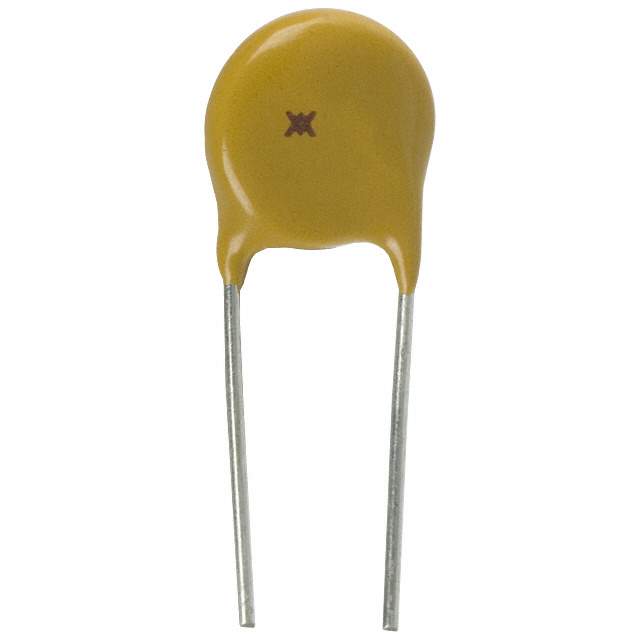

LVR005S

Part No LVR005S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description Specification Status RELEASED | PTC RESET FUSE 240V 50MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 1A
Current - Hold (Ih) (Maximum) 50mA
Current - Trip (It) 120mA
Time to Trip 10s
Resistance - Initial (Ri) (Minimum) 18.5 Ohms
Resistance - Post Trip (R1) (Maximum) 65 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Maximum) 0.430" (10.70mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209620-LVR005S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVR005S CAD Model

Description

The LVR005S is a polymeric type electronic component from Littelfuse Inc.

  • Component Type: Circuit Protection
  • Mounting Style: Through Hole
  • Approvals: CQC, CSA, TUV, and UL
  • Voltage Max: 240V (265V Int)
  • Current Max: 1A
  • Current Trip (It): 120mA
  • Time to Trip: 10s
  • Manufacturer Pack Quantity: 500
