Same model may have multiple batches, images only for reference.

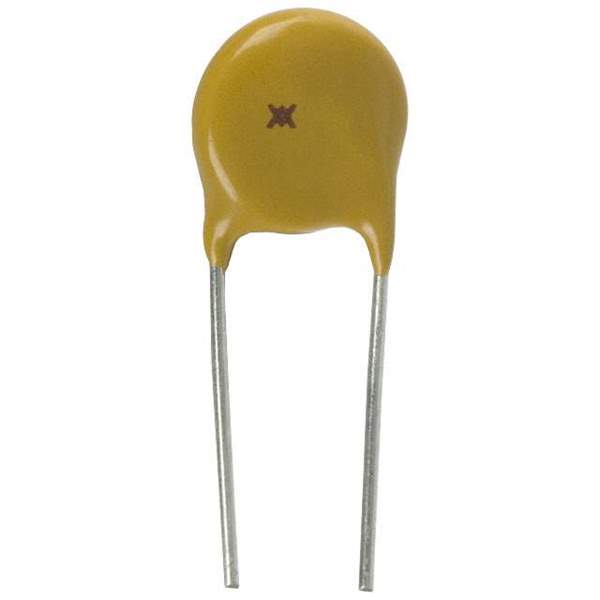

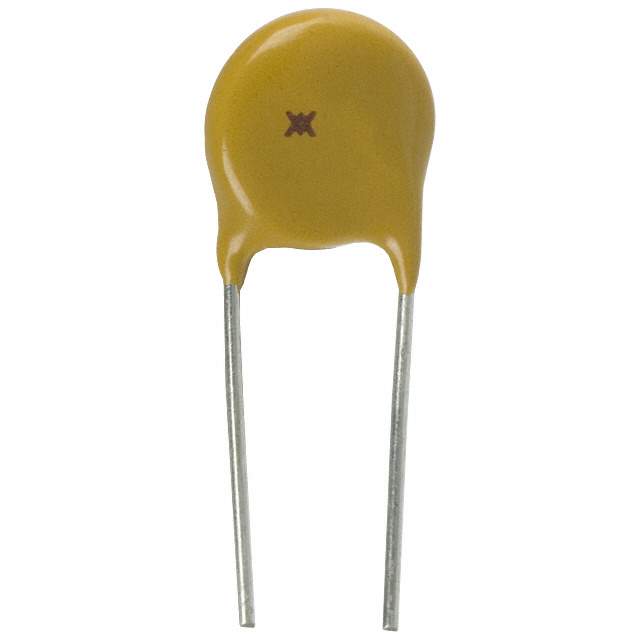

LVR005NK Real Image
Same model may have multiple batches, images only for reference.

LVR005NK

Part No LVR005NK
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 240V 50MA RADIAL / Polymeric PTC Resettable Fuse 240V (265V Int) 50 mA Ih Through Hole Radial, Disc
Datasheet
LVR005NK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, LVR
Package Bag
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 1 A
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 120 mA
Time to Trip 10 s
Resistance - Initial (Ri) (Min) 18.5 Ohms
Resistance - Post Trip (R1) (Max) 65 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) 0.476" (12.10mm)
Lead Spacing 0.200" (5.08mm)
Approval Agency CQC, CSA, TUV, UL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names RF1251-000,-1024-LVR005NK
Standard Package 500
Win Source Part Number 1073075-LVR005NK
Ultra Librarian 3D Model Ultra Librarian LVR005NK CAD Model

Description

The PolySwitch LVR is a type of Polymeric circuit protection PTC resettable fuse that comes in a radial, disc package.

  • Voltage Rating: 240V (265V Int)
  • Current Rating: 1 A
  • Current Hold (Ih) (Max): 50 mA
  • Current Trip (It): 120 mA
  • Time to Trip: 10 s
  • Resistance - Initial (Ri) (Min): 18.5 Ohms
  • Resistance - Post Trip (R1) (Max): 65 Ohms
  • Approvals: CQC, CSA, TUV, and UL
