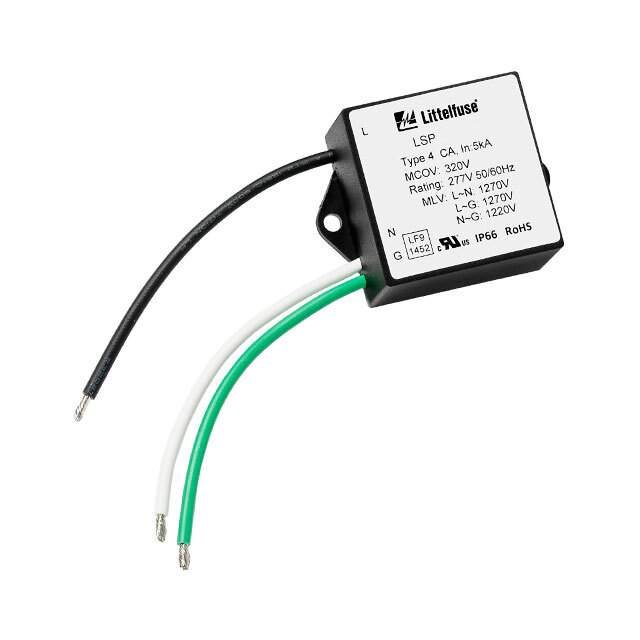

LSP10120P Real Image
Same model may have multiple batches, images only for reference.

LSP10120P

Part No LSP10120P
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description LIGHTING SURGE PROTECT 120V SCRW /
Datasheet
LSP10120P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series LSP
Package Tray
Type Type 2
Form Module Only
Number of Poles 1
Voltage - Continuous Operating (Max) (MCOV) 150VAC
Current - Discharge (Nom) (8/20µS) 10 kA
Current - Discharge (Max) (8/20µS) 20 kA
Voltage - Protection Level (VP) (2416) 900 V
Temperature Range - Operating -45°C ~ 85°C
Features Thermally Protected
Mounting Type Screw
Approval Agency CE, cURus, UL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.30.8000
Other Names -LSP10120P,F6373
Standard Package 8
Win Source Part Number 1112581-LSP10120P
Ultra Librarian 3D Model Ultra Librarian LSP10120P CAD Model

Description

The Littelfuse Inc. LSP10120P is a Type 2 TVS surge protection device with a voltage rating of 150VAC for continuous operation.

  • Current Discharge: 10 kA (Nom) and 20 kA (Max) @ 8/20µS
  • Voltage Protection Level: 900V
  • Thermal Protection: Yes
  • Operating Temperature: -45°C to 85°C
  • Mounting Type: Screws
  • Package: Tray
  • Standard Package: 8
  • Poles: Single
  • Type: Module Only
  • ECCN: EAR99
  • HTSUS: 8536.30.8000
