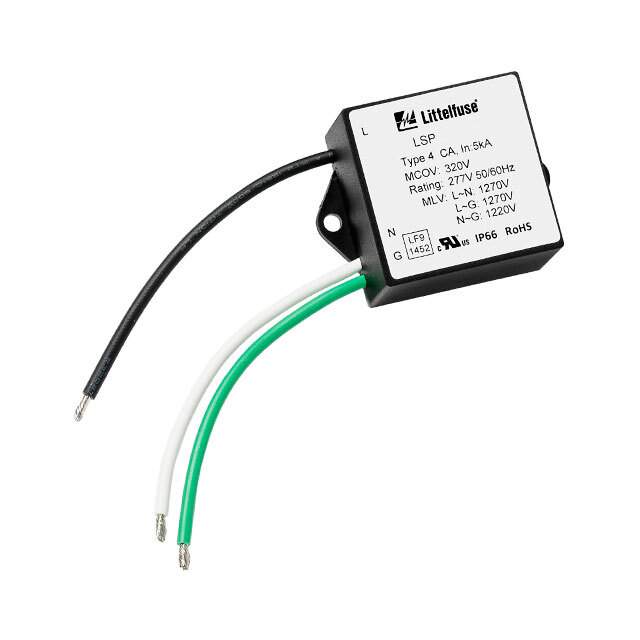

LSP05277P Real Image
Same model may have multiple batches, images only for reference.

LSP05277P

Part No LSP05277P
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description LIGHTING SURGE PROTECT 277V SCRW /
Datasheet
LSP05277P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series LSP
Package Tray
Type Type 2, Type 4
Form Module Only
Number of Poles 1
Voltage - Continuous Operating (Max) (MCOV) 320VAC
Current - Discharge (Nom) (8/20µS) 5 kA
Current - Discharge (Max) (8/20µS) 10 kA
Voltage - Protection Level (VP) (2416) 1.4 kV
Temperature Range - Operating -45°C ~ 85°C
Features Thermally Protected
Mounting Type Screw
Approval Agency CE, cURus, UL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.30.8000
Other Names F6365,-LSP05277P
Standard Package 8
Win Source Part Number 1230153-LSP05277P
Ultra Librarian 3D Model Ultra Librarian LSP05277P CAD Model

Description

The Littelfuse Inc. LSP05277P is a type 2 and type 4 thermally protected TVS surge protection device that comes in a module-only form.

  • Type: Type 2 and Type 4 Thermally Protected TVS
  • Voltage Protection Level: 1.4 kV
  • Continuous Operating Voltage: 320VAC
  • Discharge Current: 5 kA
  • Maximum Discharge Current: 10 kA @ 8/20µS
  • Package: Tray
  • Standard Packages: 8
  • Mounting Type: Screw
  • Approvals: CE, cURus, and UL
  • Application: Circuit Protection
  • Temperature Range: -45°C to 85°C
