Same model may have multiple batches, images only for reference.

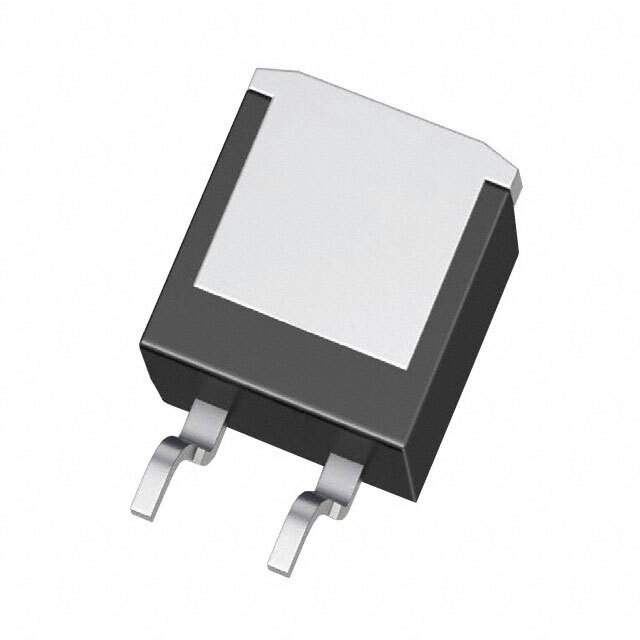

LSIC2SD120D15 Real Image
Same model may have multiple batches, images only for reference.

LSIC2SD120D15

Part No LSIC2SD120D15
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Single
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Littelfuse Inc.
Series Gen2
Package Tape & Reel
Product Status Obsolete
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 44A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 15 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 100 µA @ 1200 V
Capacitance @ Vr, F 920pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263-2L
Operating Temperature - Junction -55°C ~ 175°C
Other Names F11700TR,-LSIC2SD120D15,F11700CT,F11700DKR
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282482-LSIC2SD120D15
Ultra Librarian 3D Model Ultra Librarian LSIC2SD120D15 CAD Model

Description

The LSIC2SD120D15 is a silicon carbide Schottky diode from Littelfuse Inc.

  • Voltage DC Reverse (Vr) (Max): 1200V
  • Average Rectified Current (Io): 44A
  • Series: Gen2 series
  • Recovery Time: No recovery time
  • Minimum Current: More than 500mA
  • Forward Voltage: 1.8V @ 15A
  • Reverse Recovery Time: 0ns
  • Capacitance: 920pF @ 1V and 1MHz
  • Operating Temperature: -55°C to 175°C
  • Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Packaging: Tape and Reel
