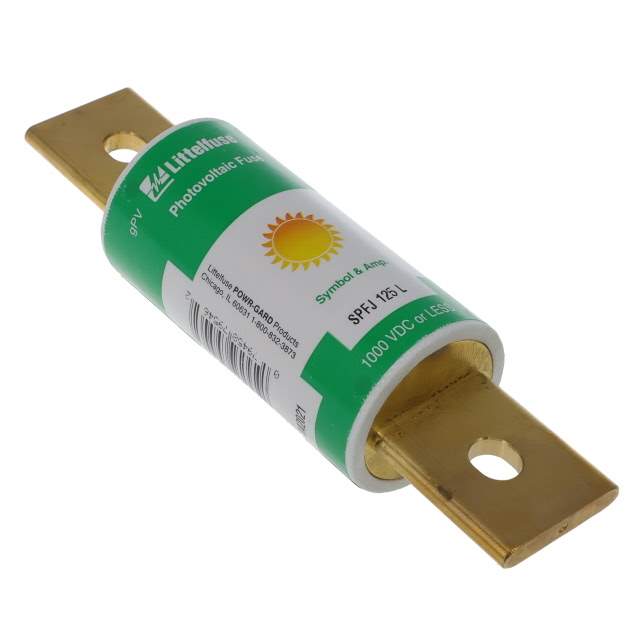

SPFJ125.XXL Real Image
Same model may have multiple batches, images only for reference.

SPFJ125.XXL

Part No SPFJ125.XXL
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPFJ125.XXL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPFJ
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 125A
Voltage Rating - AC 600 V
Voltage Rating - DC 1 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case Cylindrical, Blade Terminal (Bolt)
Dimension 1.500" Dia x 3.012" L (38.10mm x 76.50mm)
Melting I2t 6863
DC Cold Resistance 0.964 mOhms
Other Names -SPFJ125.XXL,SPFJ 125L,SPFJ 125 L
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302321-SPFJ125.XXL
Ultra Librarian 3D Model Ultra Librarian SPFJ125.XXL CAD Model

Description

The Littelfuse Inc. POWR-GARD® SPFJ is a cartridge type electrical specialty fuse.

  • Application: Solar (photovoltaic) applications
  • Response Time: Fast-blow
  • Breaking Capacity: 200kA AC and 20kA DC @ rated voltage
  • Current Rating: 125A
  • Approval Agency: CE and UL
