Same model may have multiple batches, images only for reference.

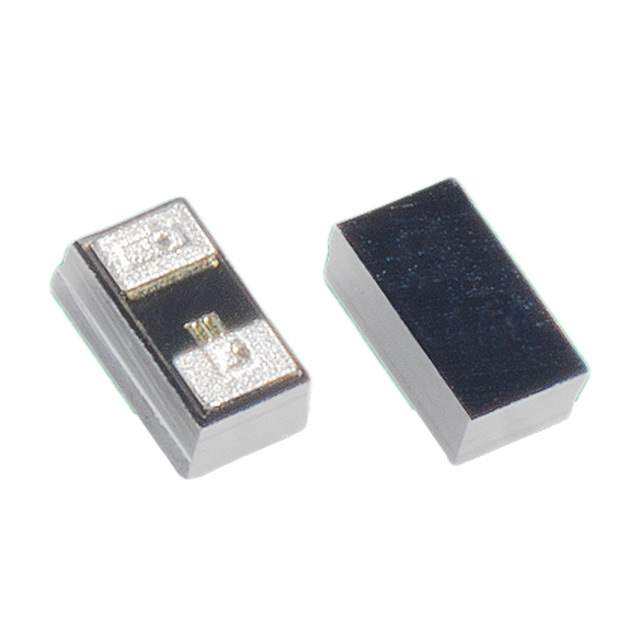

SP3145-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP3145-01WTG

Part No SP3145-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP3145, SPA®
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 7.5V (Typ)
Voltage - Clamping (Max) @ Ipp 11.5V (Typ)
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 01005 (0402 Metric)
Supplier Device Package 01005, Flip Chip
Other Names F9950DKR,-SP3145-01WTG,F9950CT,F9950TR
Standard Package 15,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299992-SP3145-01WTG
Ultra Librarian 3D Model Ultra Librarian SP3145-01WTG CAD Model

Description

The SP3145, SPA® is a Zener type TVS diode circuit protection device designed for general-purpose applications.

  • Channel Type: unidirectional
  • Voltage - Reverse Standoff: 3.3V (Max)
  • Voltage - Breakdown: 7.5V (Typ)
  • Voltage Clamping: 11.5V (Typ) @ 1A (8/20µs) peak pulse current
  • Package: 01005 (0402 Metric) SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Status: Obsolete product from Littelfuse Inc.
