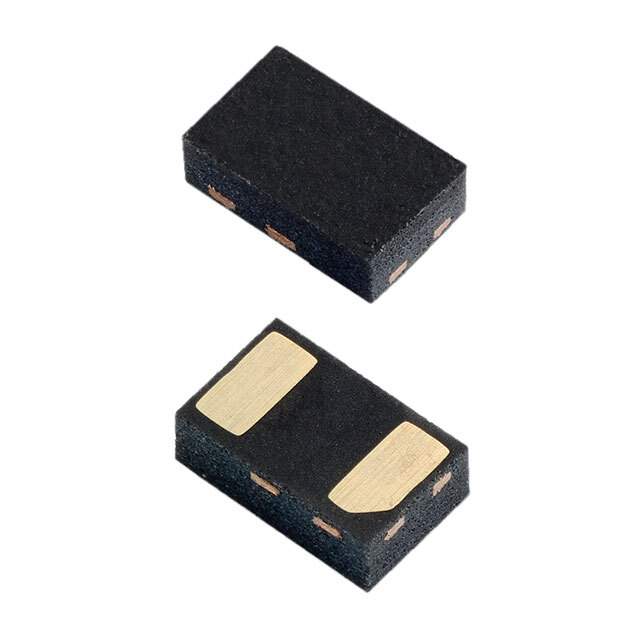

Same model may have multiple batches, images only for reference.

SP1124-01UTG

Name: SP1124-01UTG
Brand: Littelfuse Inc.
SKU: 1299982
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP1124-01UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SPA®
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Clamping (Max) @ Ipp	44.7V (Typ)
Current - Peak Pulse (10/1000µs)	20A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	130pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	0603 (1610 Metric)
Supplier Device Package	2-DFN (1.6x1)
Other Names	-SP1124-01UTG,F10111CT,F10111DKR,F10111TR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1299982-SP1124-01UTG
Ultra Librarian 3D Model	Ultra Librarian SP1124-01UTG CAD Model

Alternative Products

Description

The Littelfuse SP1124-01UTG is a Zener diode that has a reverse standoff voltage of 24V (Max) and a voltage clamping of 44.7V (Typ).

Peak Pulse Current: 20A (8/20µs)
Capacitance: 130pF @ 1MHz
Temperature Range: -40°C to 125°C
Series: SPA®
Package: Tape & Reel
Product Status: High Popularity, Balanced Supply and Demand
