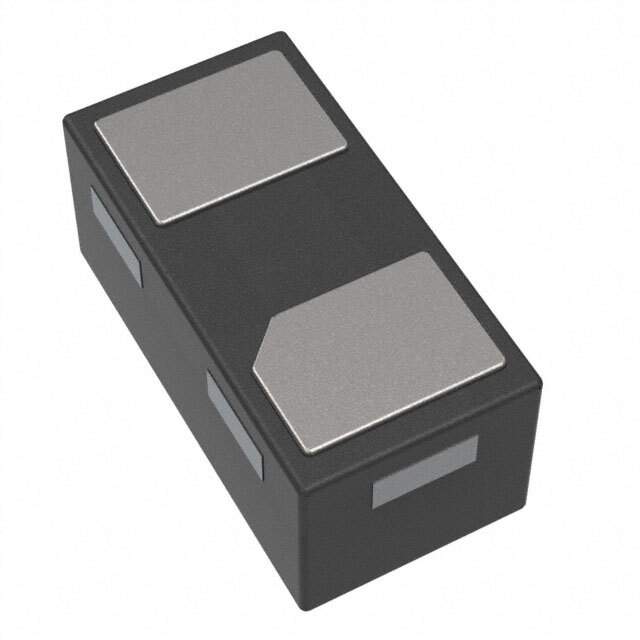

Same model may have multiple batches, images only for reference.

SP0201U-ELC-01UTG

Name: SP0201U-ELC-01UTG
Brand: Littelfuse Inc.
SKU: 1299984
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP0201U-ELC-01UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SPA®
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	8.8V (Typ)
Voltage - Clamping (Max) @ Ipp	13V (Typ)
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.3pF @ 3GHz
Temperature Range - Operating	-30°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
Other Names	F8163CT,F8163DKR,F8163TR
Standard Package	15,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1299984-SP0201U-ELC-01UTG
Ultra Librarian 3D Model	Ultra Librarian SP0201U-ELC-01UTG CAD Model

Alternative Products

Description

The SP0201U-ELC-01UTG is an electronic component from the SPA® series, manufactured by Littelfuse Inc.

Application: general purpose
Package: 15,000
Mounting Type: SMD (SMT)
Channel Type: Unidirectional
Voltage - Reverse Standoff: 7V (max)
Voltage - Breakdown: 8.8V (typ)
Voltage - Clamping: 13V (typ) @ Ipp
Power - Peak Pulse: not specified
Power Line Protection: No
Capacitance @ Frequency: 0.3pF @ 3GHz
Current - Peak Pulse: 2.5A (8/20µs)
Package/Case: 0201 (0603 Metric)
Temperature Range: -30°C ~ 85°C (TA)
