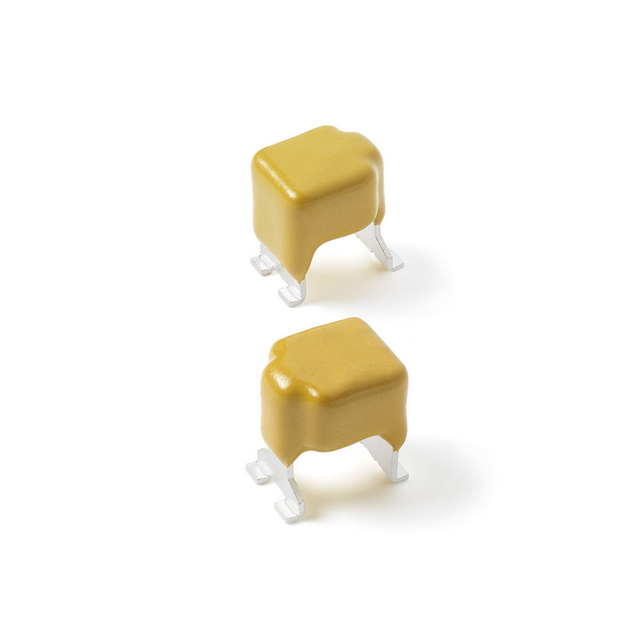

SMTAK3-076C Real Image
Same model may have multiple batches, images only for reference.

SMTAK3-076C

Part No SMTAK3-076C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMTAK3-076C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 76V
Voltage - Breakdown (Min) 85V
Voltage - Clamping (Max) @ Ipp 140V
Current - Peak Pulse (10/1000µs) 3000A (3kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 6000pF @ 10kHz (Max)
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD
Other Names F9742,-1024-SMTAK3-076C
Standard Package 200
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300934-SMTAK3-076C
Ultra Librarian 3D Model Ultra Librarian SMTAK3-076C CAD Model

Description

The 1300934-SMTAK3-076C is a Zener type TVS diode from Littelfuse Inc.

  • Application: General purpose applications
  • Channel: Bidirectional channel
  • Voltage - Reverse Standoff (typ): 76V
  • Voltage - Breakdown (min): 85V
  • Voltage - Clamping (max) @ Ipp: 140V
  • Capacitance @ Frequency: 6000pF @ 10kHz (Max)
  • Current - Peak Pulse (10/1000µs): 3000A (3kA) (8/20µs)
  • Mounting: SMD (SMT) technology
  • Package/Case: 4-SMD
  • Temperature Range: -55°C ~ 125°C (TJ)
