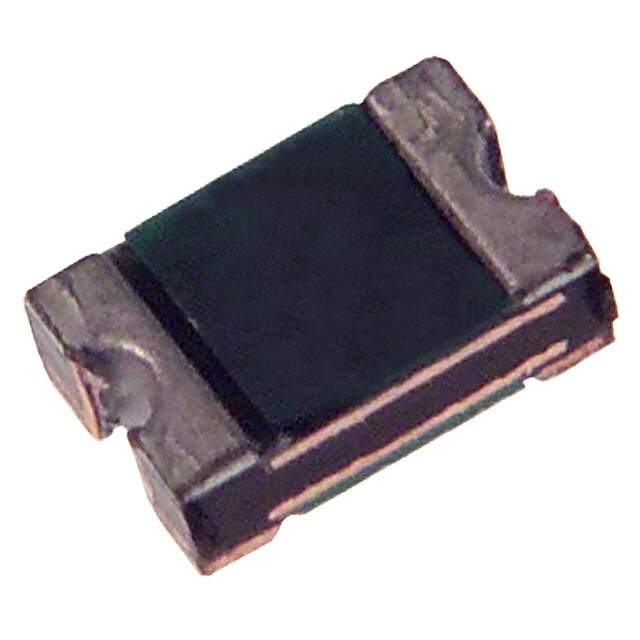

SMD0805P050TSA Real Image
Same model may have multiple batches, images only for reference.

SMD0805P050TSA

Part No SMD0805P050TSA
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Datasheet
SMD0805P050TSA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, SMD0805
Package Tape & Reel (TR)
Product Status Obsolete
Type Polymeric
Voltage - Max 6V
Current - Max 40 A
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 850 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), Concave
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency cURus, TUV
Other Names WK1072TRR,WK1072TR,WK1072CT,WK1072CTR
Standard Package 3,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1301625-SMD0805P050TSA
Ultra Librarian 3D Model Ultra Librarian SMD0805P050TSA CAD Model

Description

The POLY-FUSE series SMD0805 resettable fuse is a polymeric type circuit protection component designed to protect electronic devices from overcurrent and short circuit conditions.

  • Packaging: Tape and Reel
  • Maximum Thickness: 0.039 inches
  • Maximum Voltage Rating: 6V
  • Maximum Current Rating: 40A
  • Time to Trip: 100ms
  • Current Hold: 500mA
  • Initial Resistance: 150mOhms
  • Post-Trip Resistance: 850mOhms
  • Manufacturer: Littelfuse Inc.
  • Approvals: cURus and TUV
  • RoHS Compliance: Non-compliant
  • ECCN: EAR99
  • Status: Obsolete
  • Standard Package: 3,000
