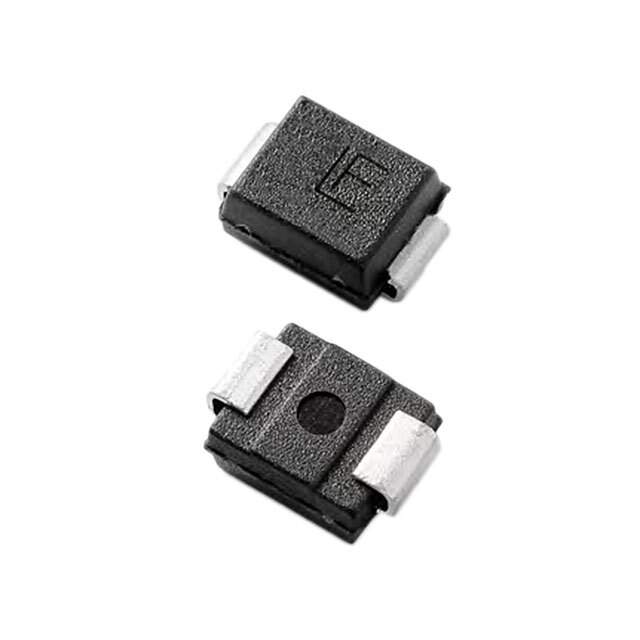

SMBJ24A-HR Real Image
Same model may have multiple batches, images only for reference.

SMBJ24A-HR

Part No SMBJ24A-HR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMBJ24A-HR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMBJ-HR
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 38.9V
Current - Peak Pulse (10/1000µs) 15.5A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Base Product Number SMBJ24
Other Names -SMBJ24A-HR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300589-SMBJ24A-HR
Ultra Librarian 3D Model Ultra Librarian SMBJ24A-HR CAD Model

Description

The SMBJ24A-HR is a TVS diode that is designed to protect circuits from voltage spikes.

  • Breakdown Voltage: 26.7V
  • Clamping Voltage: 38.9V @ 15.5A peak pulse current
  • Power Rating: 600W
  • Package: DO-214AA (SMB) case
  • Application: General purpose
  • Standard Package: 3,000
