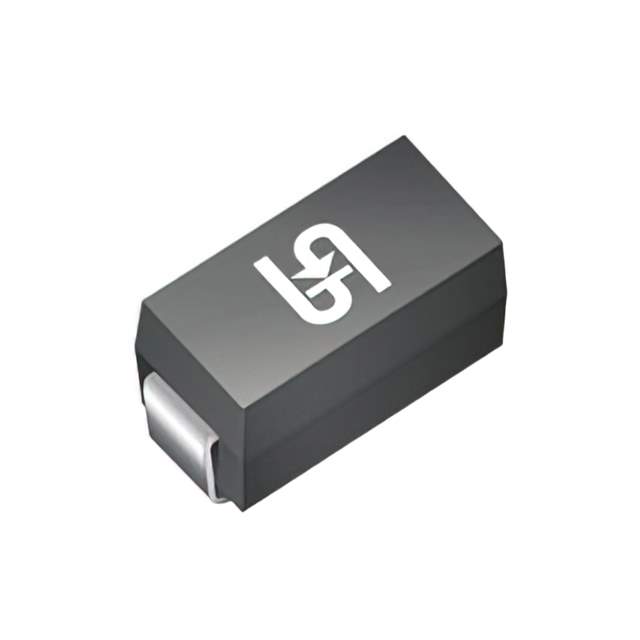

SMAJ54C Real Image
Same model may have multiple batches, images only for reference.

SMAJ54C

Part No SMAJ54C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMAJ54C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMAJ
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 54V
Voltage - Breakdown (Min) 56.84V
Voltage - Clamping (Max) @ Ipp 91.46V
Current - Peak Pulse (10/1000µs) 4.6A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Other Names -SMAJ54C
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300686-SMAJ54C
Ultra Librarian 3D Model Ultra Librarian SMAJ54C CAD Model

Description

The Littelfuse Inc. 1300686-SMAJ54C is a Zener type TVS diode.

  • Voltage Reverse Standoff: 54V
  • Breakdown Voltage: 56.84V
  • Voltage Clamping: 91.46V @ Ipp
  • Power Peak Pulse: 400W
  • Channel: Bidirectional
  • Package Type: DO-214AC, SMA
  • Packaging: Tape and reel
  • MSL Level: 1 (Unlimited)
  • Standard Package: 5,000
