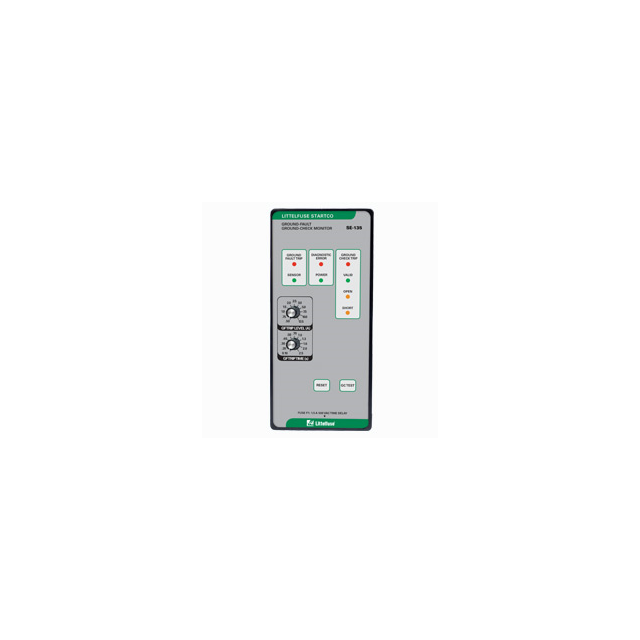

SE-135-XGC-00 Real Image
Same model may have multiple batches, images only for reference.

SE-135-XGC-00

Part No SE-135-XGC-00
Manufacturer Littelfuse Inc.
Catalog Protection Relays & Systems
Description MONITOR GRD-FAULT GRD-CHK RELAY
Datasheet
SE-135-XGC-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Protection Relays & Systems
Mfr Littelfuse Inc.
Series SE-135
Package Bulk
Function Ground Fault
Voltage - Supply 65 ~ 265VAC, 85 ~ 275VDC
Delay Time 0.1 ~ 2.5s
Mounting Type Panel Mount
Termination Style Screw Terminal
Features CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button
Temperature Range - Operating -40°C ~ 60°C
Other Names -1024-SE-135-XGC-00
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level Not Applicable
HTSUS 0000.00.0000
Win Source Part Number 1272459-SE-135-XGC-00
Ultra Librarian 3D Model Ultra Librarian SE-135-XGC-00 CAD Model

Description

The SE-135 Ground Fault Protection Relay is a highly reliable industrial automation and controls product that is designed to provide protection against ground faults in electrical systems.

  • Voltage Supply: 65 ~ 265VAC and 85 ~ 275VDC
  • Mounting: Panel mount
  • Features: CT loop monitoring, harmonic filtering, manual reset, and test button
  • Applications: Industrial automation and controls applications
  • Delay Time: 0.1 ~ 2.5s
  • Temperature Range: -40°C ~ 60°C
  • RoHS: Non-compliant
  • Packaging: Bulk packaging
