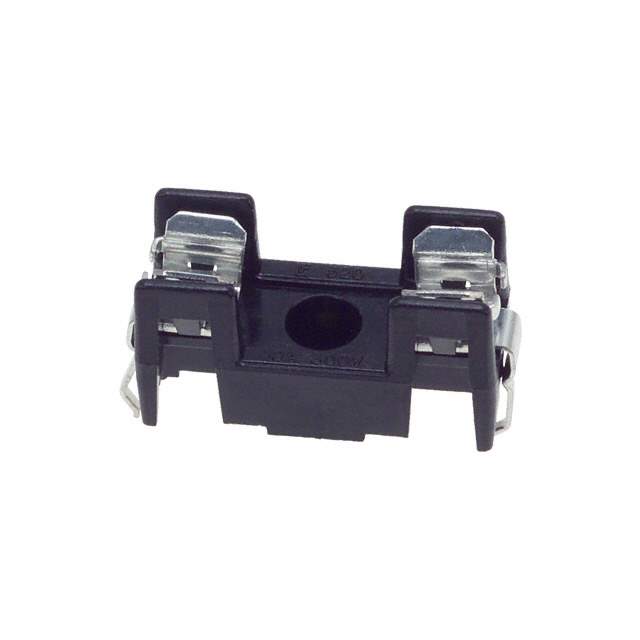

05200101Z Real Image
Same model may have multiple batches, images only for reference.

05200101Z

Part No 05200101Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOK CARTRIDGE 600V 10A PCB / Fuse Block 10 A 600V 1 Circuit Cartridge Through Hole
Datasheet
05200101Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Through Hole
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 10 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 600V
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number -1024-05200101Z,520101,5200101Z,05200101Z-ND,F1504
Standard Package 1
Win Source Part Number 1334682-05200101Z
Ultra Librarian 3D Model Ultra Librarian 05200101Z CAD Model

Description

The Littelfuse Inc. 1334682-05200101Z is a fuse holder used to protect electronic devices from overcurrent.

  • Supply and Demand: Sufficient
  • Fuse Size: 5mm x 20mm Cartridge
