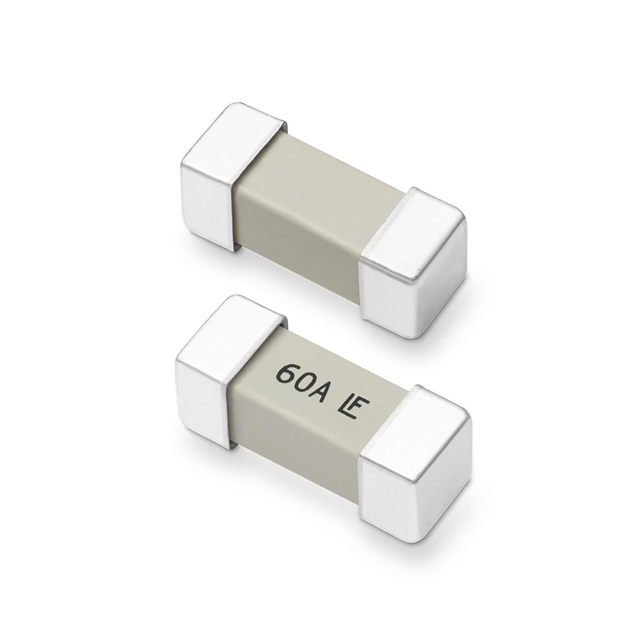

0456050.DRSDE Real Image
Same model may have multiple batches, images only for reference.

0456050.DRSDE

Part No 0456050.DRSDE
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MT 50A 250VAC 80VDC SMD / 50 A 250 V AC 80 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0456050.DRSDE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series NANO²® 456SDE
Package Tape & Reel
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 50 A
Voltage Rating - AC 250 V
Voltage Rating - DC 80 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 150A AC, 600A DC
Melting I2t 2700
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm)
DC Cold Resistance 0.00105 Ohms
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1350776-0456050.DRSDE
Ultra Librarian 3D Model Ultra Librarian 0456050.DRSDE CAD Model

Description

The NANO® 456SDE is a surface mount fuse from the NANO® 456SDE series.

  • Response Time: Fast Blow
  • Voltage Rating: 250V AC and 80V DC
  • Breaking Capacity: 150A AC and 600A DC @ rated voltage
  • Current Rating: 50A
  • DC Cold Resistance: 0.00105 Ohms
  • Package: Tape and Reel
  • Pieces Per Package: 1,500
  • Length: 0.480 inches
  • Width: 0.177 inches
  • Height: 0.177 inches
  • Mounting Type: Surface Mount
