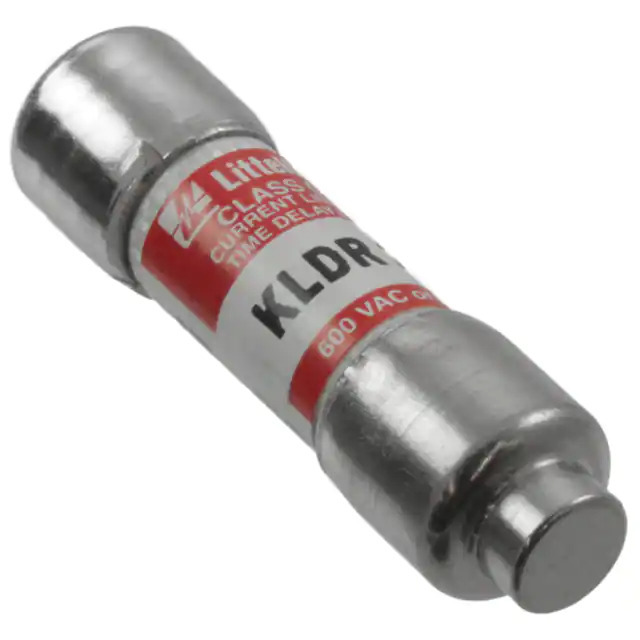

KLDR020.T Littelfuse Inc.
Same model may have multiple batches, images only for reference.

KLDR020.T

Part No KLDR020.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 20A 600VAC/300VDC
Datasheet
KLDR020.T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 20A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Features -
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1378745-KLDR020.T
Ultra Librarian 3D Model Ultra Librarian KLDR020.T CAD Model

Description

The 1378745-KLDR020.T is an electrical specialty fuse from Littelfuse Inc.'s POWR-GARD KLDR series.

  • Application: Transformer Protection
  • Current Rating: 20A
  • Voltage Rating: 600V AC and 300V DC
  • Fuse Type: Cartridge
  • Package: 5AG, 10mm x 38mm (Midget)
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC and 20kA DC @ rated voltage
  • Compliance: CE, CSA, and UL
  • Status: Obsolete
