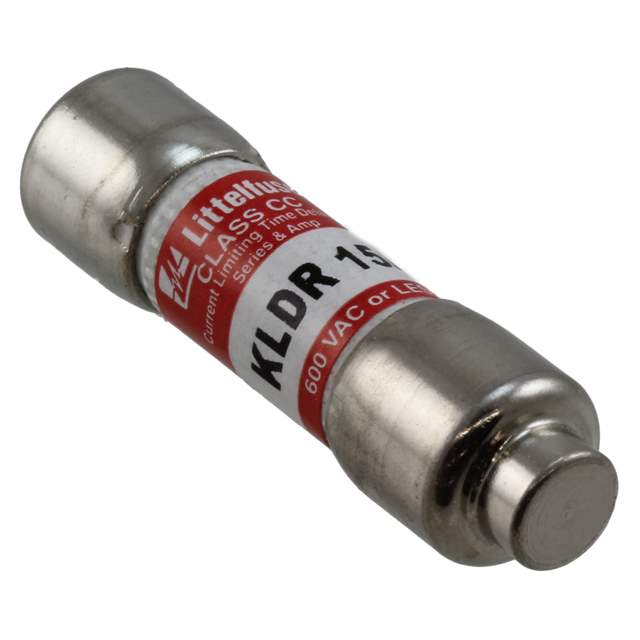

KLDR015.TXP Real Image
Same model may have multiple batches, images only for reference.

KLDR015.TXP

Part No KLDR015.TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 15A 600VAC/300VDC / 600 Vac
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge
Current Rating (Amps) 15A
Voltage Rating - AC 600V
Voltage Rating - DC 300V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approvals CE, CSA, UL
Breaking Capacity at Rated Voltage 200kA AC, 20kA DC
Mounting Style Holder
Manufacturer Package 5AG, 10mm x 38.1mm
Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811117-KLDR015.TXP
Ultra Librarian 3D Model Ultra Librarian KLDR015.TXP CAD Model

Description

The Littelfuse Inc. KLDR015.TXP is a slow blow cartridge fuse that is ideal for transformer protection applications.

  • Current Rating: 15A
  • Breaking Capacity: 200kA AC, 20kA DC
  • Voltage Rating: 600V AC, 300V DC
  • Approvals: CE, CSA, UL
  • Diameter: 0.406 inches
  • Length: 1.500 inches
  • Package: 5AG, 10mm x 38.1mm
  • Mounting: Holder
  • Manufacturer Package Quantity: 10
  • MSL Level: 1 (unlimited)
