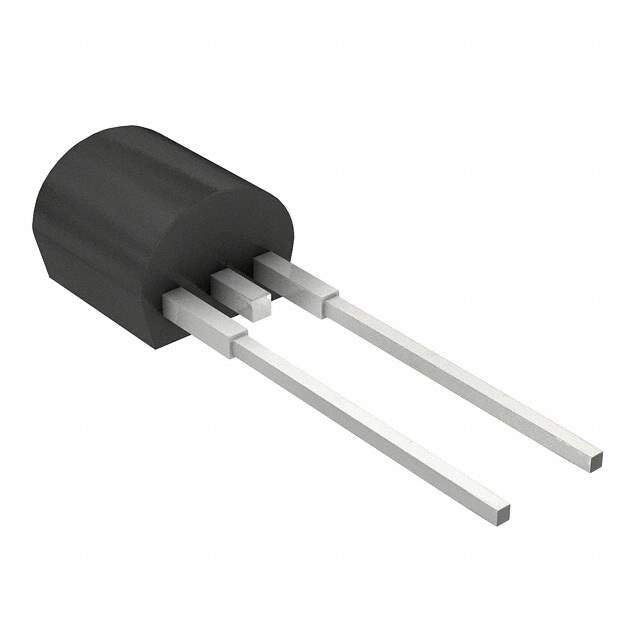

K1300E70AP

Part No K1300E70AP
Manufacturer Littelfuse Inc.
Catalog Diacs, Sidacs
Description SIDAC 120-138V 1A TO92 / Diac/Sidac Thyristor 120 ~ 138V TO-92
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - DIACs, SIDACs
Mfr Littelfuse Inc.
Package Tape & Box (TB)
Voltage - Breakover 120 ~ 138V
Current - Breakover 10 µA
Current - Hold (Ih) (Max) 150 mA
Current - Peak Output 1 A
Temperature Range - Operating -40°C ~ 125°C (TJ)
Package / Case TO-226-2, TO-92-2 (TO-226AC) (Formed Leads)
Supplier Device Package TO-92
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.30.0080
Other Names -K1300E70AP
Standard Package 2,000
Win Source Part Number 1066514-K1300E70AP
Ultra Librarian 3D Model Ultra Librarian K1300E70AP CAD Model

Description

The Littelfuse Inc. 1066514-K1300E70AP is a thyristor that falls under the category of Discrete Semiconductor Products - Thyristors - DIACs, SIDACs.

  • Packaging: Tape & Box (TB)
  • Standard Package: 2,000
  • Maximum Current Hold (Ih): 150 mA
  • Voltage Breakover: 120 ~ 138V
  • Current Peak Output: 1 A
  • Current Breakover: 10 μA
  • Package/Case: TO-226-2, TO-92-2 (TO-226AC) (Formed Leads)
  • Supplier Device Package: TO-92
