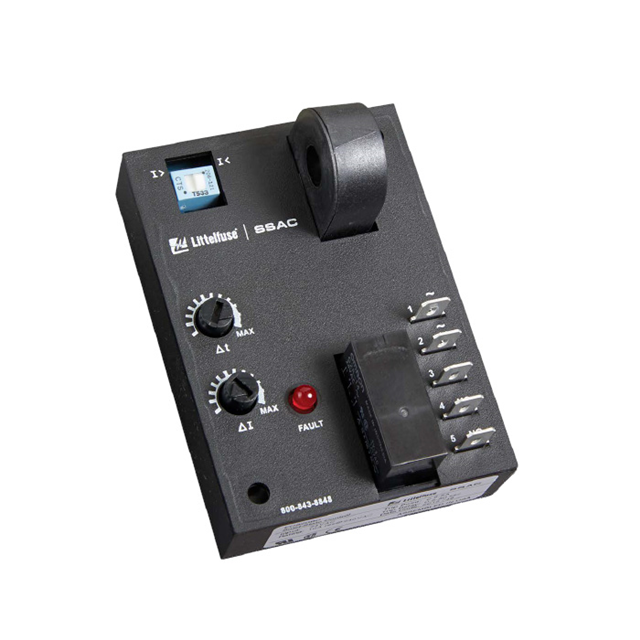

ECS40AC Real Image
Same model may have multiple batches, images only for reference.

ECS40AC

Part No ECS40AC
Manufacturer Littelfuse Inc.
Catalog Monitor - Current/Voltage - Relay Output
Description RELAY CUR SENSE 120VAC 0.5-5A / Current Sensing AC 120VAC
Datasheet
ECS40AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Monitor - Relay Output
Mfr Littelfuse Inc.
Series ECS
Package Bulk
Type Current Sensing AC
Trip Status Energized High/Low
Trip Range 0.5 ~ 5A AC
Delay Time 0.15 Sec ~ 7 Sec
Voltage - Supply 120VAC
Output Type Relay
Circuit SPDT (1 Form C)
Contact Rating @ Voltage 10A @ 240VAC
Mounting Type Chassis Mount
Temperature Range - Operating -40°C ~ 60°C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0055
Other Names -1024-ECS40AC
Standard Package 1
Win Source Part Number 1090163-ECS40AC
Ultra Librarian 3D Model Ultra Librarian ECS40AC CAD Model

Description

The ECS40AC is a current sensing AC monitor with a SPDT (1 Form C) circuit from Littelfuse Inc.

  • Circuit: SPDT (1 Form C)
  • Contact Rating: 10A @ 240VAC
  • Delay Time: 0.15 Sec ~ 7 Sec
  • Trip Range: 0.5 ~ 5A AC
  • Trip Status: Energized High/Low
  • Voltage Supply: 120VAC
  • Application: Industrial Automation and Controls (Relay Output Monitoring)
  • Packaging: Bulk
  • Standard Package: 1
  • Series: ECS
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C ~ 60°C
  • ECCN: EAR99
