Same model may have multiple batches, images only for reference.

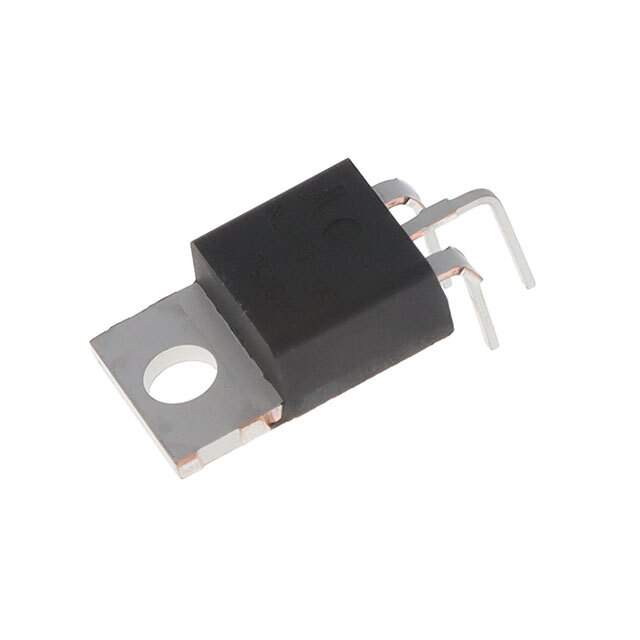

D4015L56 Real Image
Same model may have multiple batches, images only for reference.

D4015L56

Part No D4015L56
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Single
Description Teccor manufactures 15 A rms to 25 A rms rectifiers
Datasheet
D4015L56 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 400V
Current - Average Rectified (Io) 9.5A
Voltage - Forward (Vf) (Maximum) @ If 1.6V @ 9.5A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4μs
Current - Reverse Leakage @ Vr 10μA @ 400V
Mounting Style Through Hole
Package TO-220-3 Isolated Tab, Formed Leads
Manufacturer Package TO-220 Isolated Tab
Operating Temperature - Junction -40°C ~ 125°C
RoHS State Request Verification
Win Source Part Number 1166174-D4015L56
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Family Name D4015L56
Introduction Date July 09, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian D4015L56 CAD Model

Description

The D4015L56 is a through-hole, standard recovery diode manufactured by Littelfuse Inc. Littelfuse Inc..

  • Mounting Type: Through-hole
  • Type: Standard Recovery Diode
  • Current Rating: 9.5A
  • Reverse Recovery Time (trr): 4μs
  • Temperature Range: -40°C to 125°C
  • Voltage Rating: 400V
  • Voltage Forward (Vf): 1.6V @ 9.5A
  • Package Size: TO-220-3 Isolated Tab, Formed Leads
  • Application: Discrete Semiconductor Products
  • RoHS Compliant: Yes
  • Packaging: Bulk
  • Popularity Rating: Medium
  • Status: Obsolete
  • Estimated EOL Date: Not Specified
