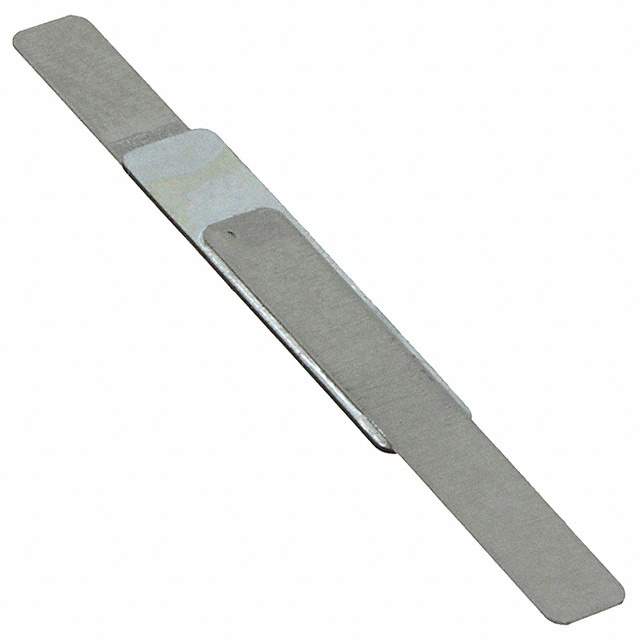

VLR175F Real Image
Same model may have multiple batches, images only for reference.

VLR175F

Part No VLR175F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC 5VDC 100AMP RESET / PTC Resettable Fuse 1.75A(hold) 4.2A(trip) 12V 100A 1.4W 5s 0.017Ohm SMD Solder Pad 24.5 X 3.3 X 0.8mm Bulk
Datasheet
VLR175F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, VLR
Packaging Bulk
Type Polymeric
Voltage - Max 12V
Current - Max 100A
Current - Hold (Ih) (Maximum) 1.75A
Current - Trip (It) 4.2A
Time to Trip 5s
Resistance - Initial (Ri) (Minimum) 17 mOhm
Resistance - Post Trip (R1) (Maximum) 62 mOhm
Operating Temperature Range -40°C ~ 70°C
Mounting User Defined
Package Strap
Dimension 0.935" L x 0.122" W (23.75mm x 3.10mm)
Thickness (Maximum) 0.032" (0.80mm)
Approvals CSA, TUV, UL
Win Source Part Number 799111-VLR175F
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VLR175F CAD Model

Description

The Littelfuse Inc. VLR175F PolySwitch is a polymeric type circuit protection device manufactured by Littelfuse Inc..

  • Package: Strap
  • Approvals: CSA, TUV, UL
  • Maximum Voltage: 12V
  • Maximum Current: 100A
  • Current Trip: 4.2A
  • Time to Trip: 5 seconds
  • Current Hold: 1.75A
  • Initial Resistance: 17 mOhm
  • Post-Trip Resistance: 62 mOhm
  • Thickness: 0.032" (0.80mm)
  • Dimension: 0.935" L x 0.122" W (23.75mm x 3.10mm)
  • Introduction Date: November 09, 2015
  • Country of Origin: China
  • EOL Date: 2028 (estimated)
  • Supply and Demand Status: Limited
