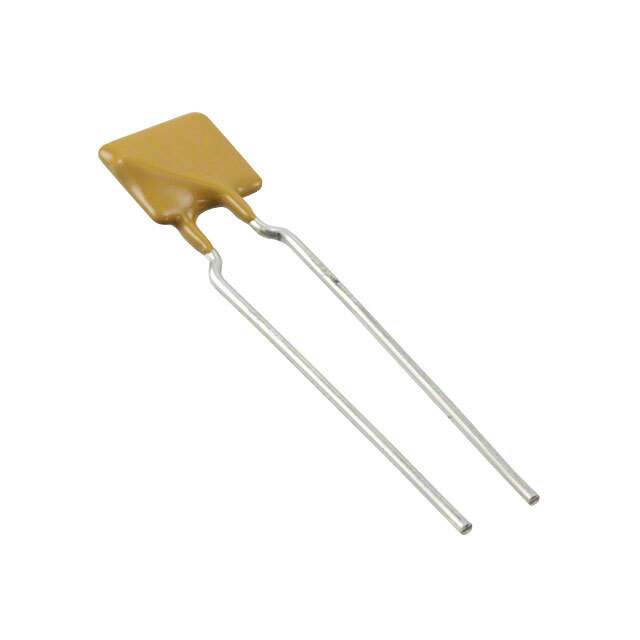

AGRF1200 Real Image
Same model may have multiple batches, images only for reference.

AGRF1200

Part No AGRF1200
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 12A RADIAL / PolySwitch Resettable Devices Automotive Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 12A
Current - Trip (It) 22.1A
Time to Trip 8s
Resistance - Initial (Ri) (Min) 3 mOhms
Resistance - Post Trip (R1) (Maximum) 8.6 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.689" L x 0.138" W (17.50mm x 3.50mm)
Height - Seated (Maximum) 1.134" (28.80mm)
Lead Spacing 0.400" (10.15mm)
Manufacturer Pack Quantity 250
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804578-AGRF1200
Ultra Librarian 3D Model Ultra Librarian AGRF1200 CAD Model

Description

The AGRF1200 is a polymeric component manufactured by Littelfuse Inc.

  • Packaging: Bulk
  • Mounting Style: Through-Hole
  • Approvals: -
  • Lead Spacing: 0.400" (10.15mm)
  • Voltage Max: 16V
  • Current Max: 100A
  • Current Trip (It): 22.1A
  • Time to Trip: 8s
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.689" L x 0.138" W (17.50mm x 3.50mm)
  • Resistance - Initial (Ri) (Min): 3 mOhms
  • Manufacturer Package: Radial, Disc
  • Current - Hold (Ih) (Maximum): 12A
  • Height - Seated (Maximum): 1.134" (28.80mm)
  • Resistance - Post Trip (R1) (Maximum): 8.6 mOhms
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 250
  • MSL Level: Not Applicable
