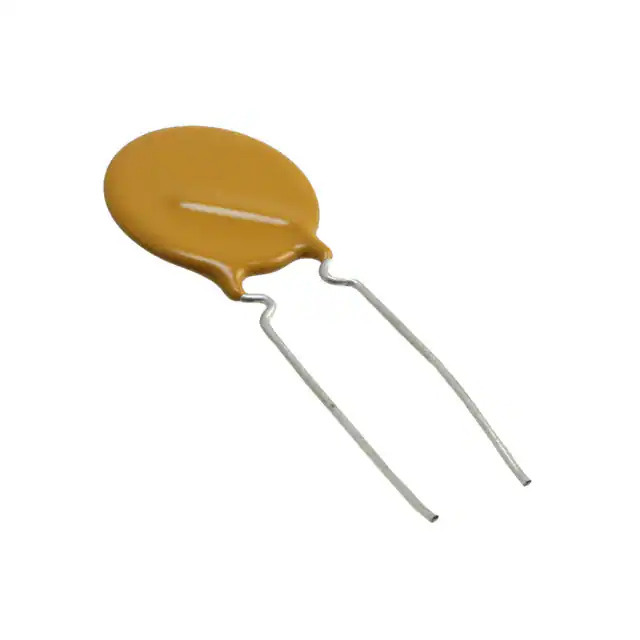

Same model may have multiple batches, images only for reference.

60R250XF

Name: 60R250XF
Brand: Littelfuse Inc.
SKU: 1361717
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60R250XF
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 2.5A RADIAL / Polymeric PTC Resettable Fuse 60V 2.5 A Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 60R
Package	Bulk
Product Status	Active
Type	Polymeric
Voltage - Max	60V
Current - Hold (Ih) (Max)	2.5 A
Current - Trip (It)	5 A
Current - Max	40 A
Time to Trip	15.6 s
Resistance - Initial (Ri) (Min)	50 mOhms
Resistance - Post Trip (R1) (Max)	130 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.785" Dia x 0.122" T (19.93mm x 3.10mm)
Height - Seated (Max)	1.032" (26.20mm)
Thickness (Max)	-
Lead Spacing	0.402" (10.20mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361717-60R250XF
Ultra Librarian 3D Model	Ultra Librarian 60R250XF CAD Model

Alternative Products

Description

The 1361717-60R250XF is a polymeric PTC resettable fuse manufactured by Littelfuse Inc.

Series: POLY-FUSE® 60R
Operating Temperature: -40°C to 85°C
Maximum Current: 40A
Hold Current: 2.5A
Voltage Rating: 60V
Trip Current: 5A
Time to Trip: 15.6 seconds
Package: Radial, disc
Lead Spacing: 0.402" (10.20mm)
Mounting Type: Through-hole
