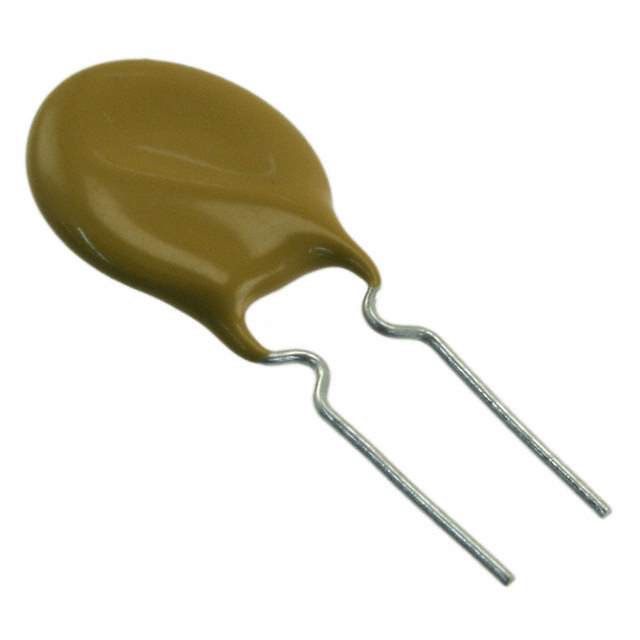

Same model may have multiple batches, images only for reference.

60R090XU

Name: 60R090XU
Brand: Littelfuse Inc.
SKU: 971476
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60R090XU
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 900MA RADIAL / Polymeric PTC Resettable Fuse 60V 900 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 60R
Package	Bulk
Type	Polymeric
Voltage - Max	60V
Current - Max	40 A
Current - Hold (Ih) (Max)	900 mA
Current - Trip (It)	1.8 A
Time to Trip	7.2 s
Resistance - Initial (Ri) (Min)	200 mOhms
Resistance - Post Trip (R1) (Max)	470 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.441" Dia x 0.122" T (11.20mm x 3.10mm)
Height - Seated (Max)	0.622" (15.80mm)
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	060R0090U,060R0090,F2009-ND,F2009,F1923,60R090,-1024-60R090XU
Standard Package	500
Win Source Part Number	971476-60R090XU
Ultra Librarian 3D Model	Ultra Librarian 60R090XU CAD Model

Description

The Littelfuse Inc. 971476-60R090XU is a polymeric PTC resettable fuse that provides circuit protection.

Fuse Type: PTC Resettable
Series: POLY-FUSE® 60R
Package: Bulk
Maximum Voltage: 60V
Maximum Current: 40A
Current Hold: 900mA
Current Trip: 1.8A
Trip Time: 7.2 seconds
Mounting Type: Through Hole
Package/Case: Radial, Disc
Temperature Range: -40°C to 85°C
Dimensions: 0.441" diameter x 0.122" thickness (11.20mm x 3.10mm)
Initial Resistance: 200 mOhms
Post-Trip Resistance: 470 mOhms
Approvals: cURus and TUV
