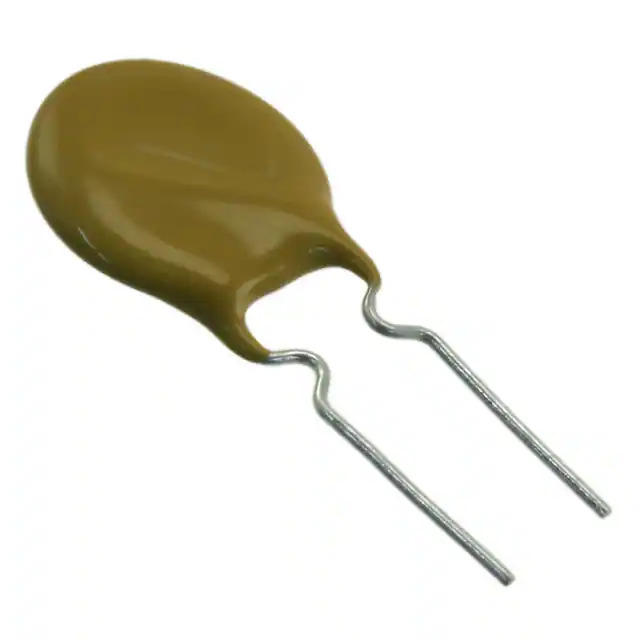

Same model may have multiple batches, images only for reference.

60R090XPR

Name: 60R090XPR
Brand: Littelfuse Inc.
SKU: 1361661
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60R090XPR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 900MA RADIAL / Polymeric PTC Resettable Fuse 60V 900 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 60R
Product Status	Active
Type	Polymeric
Voltage - Max	60V
Current - Hold (Ih) (Max)	900 mA
Current - Trip (It)	1.8 A
Current - Max	40 A
Time to Trip	7.2 s
Resistance - Initial (Ri) (Min)	200 mOhms
Resistance - Post Trip (R1) (Max)	470 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.441" Dia x 0.122" T (11.20mm x 3.10mm)
Height - Seated (Max)	0.622" (15.80mm)
Thickness (Max)	-
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361661-60R090XPR
Ultra Librarian 3D Model	Ultra Librarian 60R090XPR CAD Model

Alternative Products

Description

The POLY-FUSE® 60R series is a polymeric PTC resettable fuse manufactured by Littelfuse Inc.

Maximum Current Rating: 40 A
Maximum Voltage Rating: 60V
Shape: Radial, Disc
Mounting Type: Through Hole
Lead Spacing: 0.201" (5.10mm)
Size: 0.441" Dia x 0.122" T (11.20mm x 3.10mm)
Resistance: 200 mOhms
Post-Trip Resistance: 470 mOhms
Approvals: cURus, TUV
