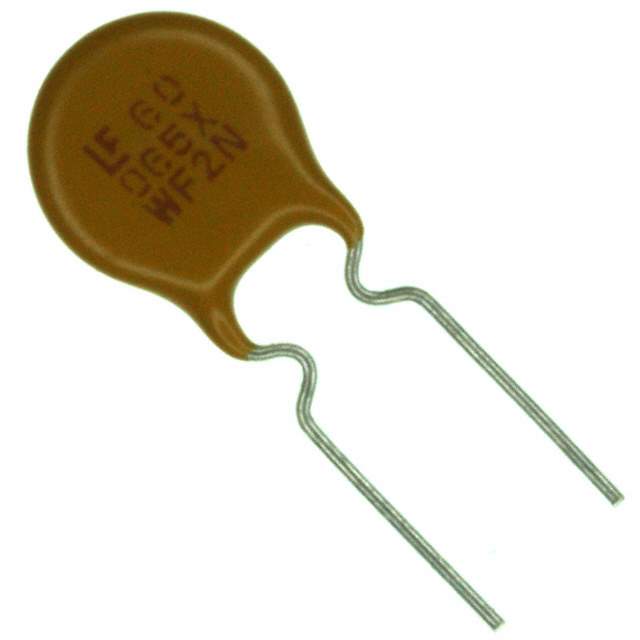

60R065XPR Real Image1 60R065XPR Real Image2
Same model may have multiple batches, images only for reference.
60R065XPR Real Image1 60R065XPR Real Image2
60R065XPR Real Image1 60R065XPR Real Image2
Same model may have multiple batches, images only for reference.

60R065XPR

Part No 60R065XPR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 650MA RADIAL / Polymeric PTC Resettable Fuse 60V 650 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 60R
Package Cut Tape (CT)Tape & Box (TB)
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 650 mA
Current - Trip (It) 1.3 A
Current - Max 40 A
Time to Trip 5.3 s
Resistance - Initial (Ri) (Min) 310 mOhms
Resistance - Post Trip (R1) (Max) 720 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.370" Dia x 0.122" T (9.40mm x 3.10mm)
Height - Seated (Max) 0.571" (14.50mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Standard Package 2,000 pcs
Win Source Part Number 1380967-60R065XPR
Ultra Librarian 3D Model Ultra Librarian 60R065XPR CAD Model

Description

The POLY-FUSE 60R is a polymeric PTC resettable fuse designed for circuit protection.

  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Size: 0.370" diameter and 0.122" thickness
  • Package: Radial, disc
  • Temperature Range: -40°C to 85°C
  • Resistance (Initial): 310 mOhms
  • Resistance (Post Trip): 720 mOhms
  • Manufacturer: Littelfuse Inc.
  • Commonly Used In: Power supplies, battery chargers, and automotive electronics
